Boxia vs StepUp: Which Drop Foot Support Should You Choose?

Boxia® and StepUp® are lightweight textile supports designed to help lift the front of the foot during walking.

Both may suit people with flaccid foot drop who need assistance clearing their toes during the swing phase of gait, but they achieve this in different ways.

The main differences involve:

• How the support attaches to the foot
• Whether footwear is required
• The materials used
• Latex content
• The position of the calf and ankle components
• Sizing options
• How the tension is adjusted
• How discreetly the support fits beneath clothing
• Whether a separate attachment is needed for barefoot use

Neither support is automatically best for everyone. The right option depends on the cause and severity of your foot drop, ankle control, footwear, skin condition, hand function and everyday activities.

Quick Comparison

Boxia® may suit you when:

• You normally wear suitable lace-up or fastening footwear
• You want a well-established textile drop foot support
• You prefer the lifting strap to connect directly to the shoe
• You want little or no bulky footplate inside the shoe
• You want adjustable dorsiflexion tension
• You prefer a choice of black or beige
• You are comfortable using a product containing latex
• You may want to add a separate shoeless attachment

StepUp® may suit you when:

• You want a latex-free support
• You need to use the support with and without footwear
• You prefer a soft textile calf-and-foot system
• You want a low-profile design beneath clothing
• You need a choice of standard sizes or a trimmable universal version
• You want straps that can provide some medio-lateral stability
• You do not want to purchase a separate barefoot attachment
• You need a lightweight support for everyday mobility

What Do Boxia and StepUp Have in Common?

Both products are designed primarily to assist people with flaccid foot drop.

Flaccid foot drop occurs when weakness or reduced nerve and muscle function makes it difficult to lift the front of the foot and toes. During walking, this can cause the toes to:

• Drag along the floor
• Catch on uneven ground
• Strike steps or kerbs
• Scuff the shoe
• Increase the risk of stumbling
• Require an exaggerated high-stepping gait

Both Boxia and StepUp apply an upward pull to assist dorsiflexion as the leg swings forwards.

They are both:

• Lightweight
• Adjustable
• Textile-based
• Lower profile than many rigid AFOs
• Designed to improve toe clearance
• Intended to fit discreetly beneath clothing
• Available for everyday walking support
• Suitable for use on either the left or right side when fitted correctly

The products assist movement while being worn. They do not restore damaged nerves or cure the underlying cause of foot drop.

How Does Boxia Work?

The Boxia® Drop Foot AFO uses two main components:

1. A supportive cuff positioned above the ankle
2. An adjustable elastic traction strap connected to the footwear

The strap creates an upward pull on the front of the shoe as the leg moves through the swing phase of walking. This helps raise the forefoot and improve toe clearance.

The standard Boxia does not use a conventional rigid plastic footplate beneath the sole. This reduces the amount of space occupied inside the shoe compared with many traditional AFOs.

Its main features include:

• An adjustable dorsiflexion strap
• A perforated ankle cuff
• Gel-padded areas around sensitive structures
• A low-profile design
• Black and beige colour options
• Multiple sizes
• Shoe attachment components
• An optional separate shoeless attachment

The level of upward assistance can be adjusted by changing the tension of the elastic strap.

The support should not be pulled so tightly that it forces the ankle into an uncomfortable position or makes the foot unstable during standing.

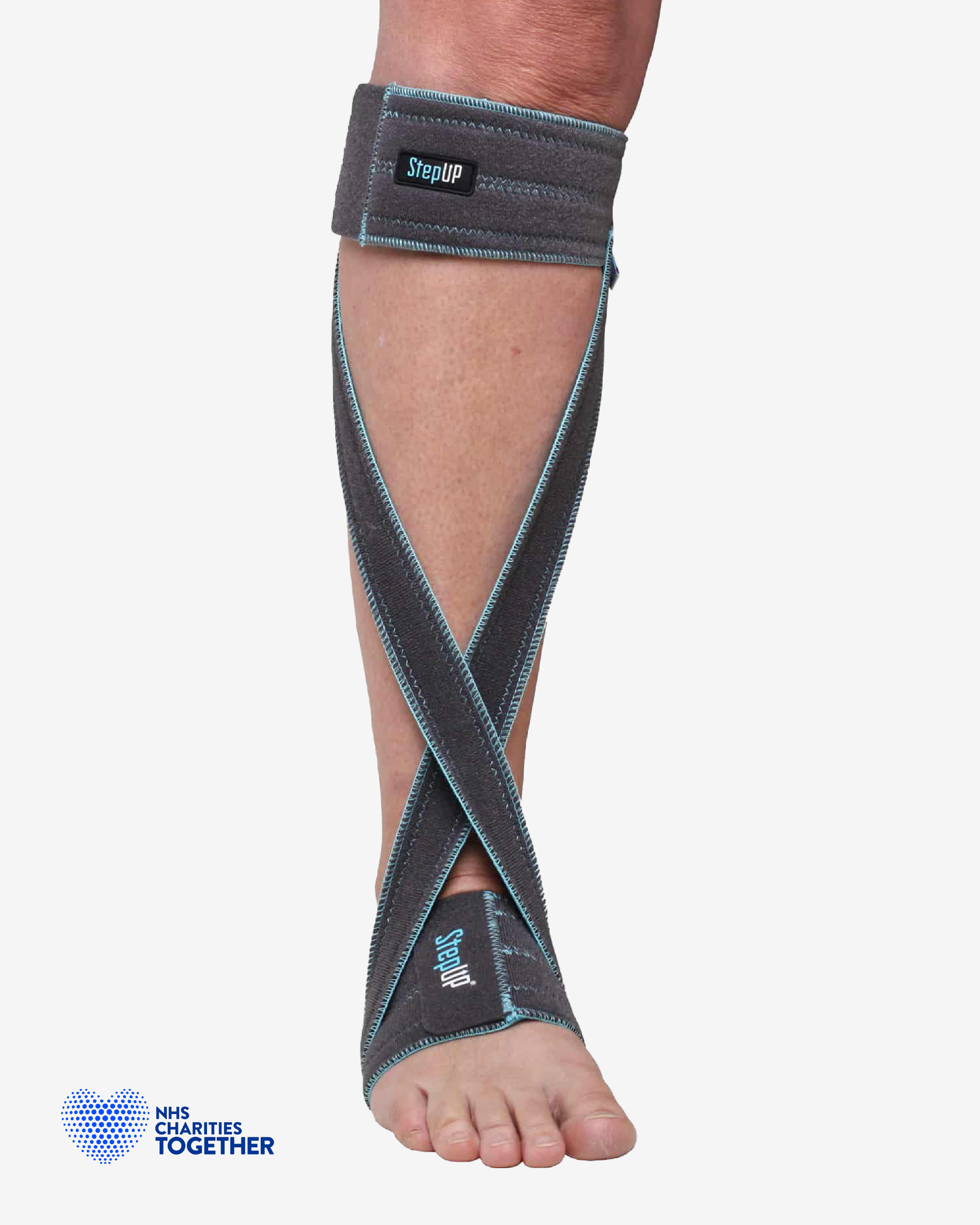

How Does StepUp Work?

The StepUp® Drop Foot Support uses a soft textile calf band and adjustable strap system to assist the foot upwards.

Its tension straps run between the lower-leg component and the foot, creating dynamic dorsiflexion assistance during walking.

The StepUp system includes:

• A soft calf band
• Touch-close fastenings
• Adjustable lifting straps
• Anti-slip silicone beading
• A low-profile textile construction
• Components that can be used with or without footwear
• Standard and universal sizing options

The strapping arrangement can also provide some medio-lateral support, helping control limited side-to-side movement in suitable users.

StepUp does not contain latex and can therefore be considered where latex sensitivity rules out standard Boxia.

The Biggest Difference: Footwear Attachment

The most obvious practical difference is how each product connects to the foot.

Boxia and footwear

Standard Boxia is primarily designed to connect its lifting strap to suitable footwear.

The attachment is normally positioned at the front of the shoe so that tension can lift the forefoot as the wearer walks.

Suitable footwear generally needs:

• A secure fastening
• A stable sole
• A supportive heel counter
• Enough structure to hold the attachment
• A secure fit around the foot
• A front area that can accept the Boxia hook or attachment

Footwear that is loose, backless or very soft may not provide a reliable anchor.

For use without shoes, Boxia has a separate Boxia® Shoeless Attachment. This wraps around the foot and provides an alternative anchor for the traction strap.

The shoeless attachment is sold separately and is selected for a particular foot, size and colour.

StepUp and footwear

StepUp can be used with or without footwear as part of its standard design.

This may be useful for someone who:

• Frequently moves between indoor and outdoor environments
• Does not always wear shoes at home
• Wants to avoid purchasing another attachment
• Needs support during parts of the day when footwear is impractical
• Prefers the lifting system to connect to a textile foot component

Even when a support can be used without shoes, take care on smooth floors. The support should not create a slipping hazard or replace appropriate safe indoor footwear where this has been recommended.

Is Boxia or StepUp More Discreet?

Both supports are considerably less bulky than many full-length rigid AFOs, but discretion depends on clothing and footwear.

Boxia beneath clothing

The Boxia ankle cuff is positioned relatively low around the leg and can often be concealed beneath:

• Trousers
• Jeans
• Long skirts
• Loose workwear
• Tracksuit bottoms

The traction strap remains visible where it connects to the footwear unless covered by the trouser leg.

Boxia is available in black and beige, allowing the wearer to choose a colour that blends more closely with clothing or skin tone.

StepUp beneath clothing

StepUp has a calf component that may extend higher up the lower leg, but its soft textile construction remains relatively slim.

It can often be worn beneath:

• Straight-leg trousers
• Loose jeans
• Tracksuit bottoms
• Work trousers
• Longer skirts

Very tight trouser legs may catch on either support, alter strap tension or make the components more visible.

The support should be fitted correctly first. Outer clothing should then be chosen to accommodate it rather than compressing or repositioning it.

Which Support Takes Up Less Space Inside the Shoe?

Boxia does not use a full rigid footplate and is specifically designed to avoid occupying the space normally taken up by a traditional in-shoe AFO.

This can make it useful when:

• A full plastic footplate makes footwear too tight
• The user wants to continue wearing familiar shoes
• Additional in-shoe bulk causes pressure
• Removing an existing insole would affect comfort

StepUp is also designed to be low profile and easily accommodated with footwear, but its textile foot components still need to sit smoothly and securely.

Whichever product is chosen, footwear must not become painfully tight around the toes, instep or sides of the foot.

Do not assume that buying a larger shoe size is always the solution. Footwear needs the correct combination of:

• Length
• Width
• Depth
• Fastening adjustment
• Heel stability
• Sole stability

Read our separate guide: Best Footwear For Foot Drop.

Which Is Better for Use Without Shoes?

StepUp has the clearer advantage when regular shoeless use is required because it is designed to function with or without footwear as supplied.

Standard Boxia requires the separate Boxia® Shoeless Attachment when it is not connected to a shoe.

StepUp may therefore be more convenient for someone who:

• Frequently removes shoes indoors
• Wants one complete system
• Does not want to transfer attachments between shoes
• Needs support during indoor movement
• Alternates between different types of footwear

However, “shoeless” does not necessarily mean completely barefoot on every floor.

People with reduced sensation, balance difficulties, diabetes, neuropathy or a history of falls may still need protective and non-slip indoor footwear. Seek professional advice where foot safety is uncertain.

Which Is Easier To Put On?

Ease of fitting depends on hand strength, reach, balance and familiarity with the product.

Fitting Boxia

Standard Boxia requires the user to:

• Position the ankle cuff
• Secure its fastening
• Connect the traction strap
• Attach it to the correct footwear point
• Adjust the lifting tension
• Check that the strap remains centred

This can become quick with practice, but connecting the strap to footwear may be difficult for someone with limited reach or hand dexterity.

Fitting StepUp

StepUp requires the user to:

• Position the calf section
• Secure the touch-close fastening
• Position the foot section
• Arrange the lifting straps
• Set an even and comfortable tension
• Check that the straps are not twisted

Its soft fastenings and universal trimmable option may help some users, but the correct strap pathway must still be understood.

Neither product should be applied while balancing unsupported on one leg. Sit in a stable chair and keep the foot supported while fitting it.

People with substantial one-handed fitting difficulties may also wish to explore the separate Boxia® Plus, which is designed specifically to support one-handed application. This is a different product and should not be confused with standard Boxia.

Which Is Better for Limited Hand Strength?

There is no universal winner because the difficulty may involve different parts of the fitting process.

Boxia may be manageable when the user can comfortably:

• Wrap and fasten the ankle cuff
• Reach the shoe
• Grip the elastic strap
• Connect the attachment

StepUp may be manageable when the user can:

• Position the calf band
• Handle touch-close straps
• Reach the lower leg and foot
• Adjust several textile components

Consider:

• Hand strength
• Finger dexterity
• Shoulder movement
• Ability to bend
• Sitting balance
• Vision
• Memory and sequencing
• Whether a carer will help

A support that is theoretically suitable but cannot be positioned correctly will not provide reliable assistance.

Which Provides More Ankle Stability?

Both products primarily assist dorsiflexion and toe clearance.

StepUp’s strapping system can provide some additional medio-lateral support, which may help with mild side-to-side control in suitable users.

However, neither textile support should automatically be treated as a replacement for a rigid or carbon AFO where substantial control is required.

Professional assessment is particularly important where there is:

• Significant ankle instability
• Marked inversion or eversion
• Strong spasticity
• A fixed ankle position
• Severe weakness
• Knee instability
• Significant loss of sensation
• Recurrent ankle sprains
• Complex neurological impairment

A rigid, thermoplastic, carbon or dynamic AFO may be more appropriate where greater structural control is needed.

Are Boxia and StepUp Suitable for Spastic Foot Drop?

Both product listings principally identify them for flaccid foot drop and dorsiflexion weakness.

Spastic foot drop may involve increased muscle tone, stiffness or an abnormal pulling pattern that cannot be managed safely by simply adding more upward strap tension.

A textile lifting support may be unsuitable or insufficient when:

• The foot is strongly pulled downwards
• The foot turns inwards
• The ankle cannot reach a neutral position
• There is a fixed contracture
• Clonus or strong spasms occur
• Knee movement is also affected

Do not overtighten either device in an attempt to overpower muscle tone.

An orthotist, physiotherapist or rehabilitation clinician should assess the full walking pattern and determine whether a different AFO design is needed.

Which Is Better for Mild Foot Drop?

Both can be considered for mild to moderate flaccid dorsiflexion weakness, depending on the individual assessment.

Boxia may appeal when the main requirement is:

• Direct upward assistance through the shoe
• Adjustable elastic tension
• Minimal in-shoe bulk
• A relatively low ankle cuff

StepUp may appeal when the main requirement is:

• Soft textile assistance
• Latex-free materials
• Use with or without footwear
• Some additional strap-based side-to-side control
• A choice including a universal trimmable option

The visible amount of toe drag does not always reveal the full severity of a neurological or nerve problem. New foot drop should still be medically assessed.

What Sizes Are Available?

Boxia sizing

Standard Boxia is available in:

• X Small
• Small
• Medium
• Large

It is available in black or beige.

Sizing should be based on the current product-specific measurement guide rather than ordinary shoe size alone.

StepUp sizing

StepUp is available in:

• Small
• Medium
• Large
• Universal

The Universal version contains components that can be trimmed to achieve a more individual fit.

Do not assume that Small, Medium or Large will correspond between the two products. Each has its own design and sizing method.

Can They Be Used on Either Foot?

Both systems can be configured for use on the left or right side when the correct fitting method and components are used.

However, a single purchased support should not be assumed to treat both feet simultaneously.

For bilateral foot drop:

• Each side needs to be assessed
• One complete support may be required for each foot
• Tension may differ between sides
• Footwear must accommodate both devices
• Balance and knee control should also be reviewed

Bilateral weakness can indicate a broader neurological or muscular problem and warrants professional assessment.

Do Boxia or StepUp Contain Latex?

This is an important difference.

Boxia

Standard Boxia contains latex within some of its components.

People with a known or suspected latex allergy should not use it without obtaining appropriate professional advice.

StepUp

StepUp is listed as latex-free.

This makes StepUp the more appropriate of the two options where avoiding latex is essential.

A latex-free label does not guarantee that a person cannot react to another textile, adhesive or silicone component. Stop using any support if a rash, swelling or significant irritation develops.

Can Either Support Be Worn All Day?

Both are designed with daily comfort in mind, but wearing time should be introduced gradually where appropriate.

The first time you use a support:

1. Fit it while seated.
2. Check all straps and edges.
3. Wear it for a short, supervised period where possible.
4. Walk on a familiar, level surface.
5. Remove it and inspect the skin.
6. Increase use gradually if no problems develop.

Regularly check:

• The front of the ankle
• The Achilles area
• The top of the foot
• The calf
• The sides of the foot
• The toes
• Areas beneath straps and fastenings

Remove the device and seek advice if you notice:

• Persistent redness
• Blistering
• Broken skin
• Increasing pain
• Numbness
• New swelling
• Changes in skin colour
• A cold or unusually hot foot
• Worsening walking stability

People with reduced sensation may not feel developing pressure and should be particularly careful with skin inspection.

Which Is Better in Warm Weather?

Both products use lightweight materials, but any close-fitting support can increase warmth.

Boxia uses a perforated cuff and has gel-padded areas around sensitive structures.

StepUp uses breathable soft textiles and has no latex.

Comfort in warm conditions also depends on:

• Sock material
• Trouser fabric
• Footwear ventilation
• Activity level
• Sweating
• Washing and drying routines
• Skin condition

Do not apply a damp support. Follow the care instructions for the exact product and allow all components to dry fully before reuse.

Can You Use Either Support for Exercise?

Both are designed primarily to assist everyday walking.

Suitability for exercise depends on:

• The activity
• Walking speed
• Ground surface
• Footwear
• Balance
• Ankle control
• Cause of the foot drop
• Falls history
• Other joint or neurological problems

Do not assume that a support suitable for walking is automatically suitable for:

• Running
• Court sports
• Contact sport
• Hiking on uneven ground
• Jumping
• Rapid direction changes

Discuss higher-impact activity with a physiotherapist, orthotist or other relevant clinician.

Can Boxia or StepUp Prevent Falls?

Both are designed to improve forefoot clearance and may reduce the chance of the toes catching the ground.

However, no AFO or foot drop support can guarantee that a person will not trip or fall.

Falls may also be caused by:

• Poor balance
• Weakness at the hip or knee
• Reduced sensation
• Visual problems
• Dizziness
• Medication
• Unsafe footwear
• Uneven surfaces
• Walking too quickly
• An incorrectly fitted support

The support should form part of a broader falls-management plan where necessary.

Read: Can AFO Braces Help Prevent Trips & Falls?

Can Either Product Cure Foot Drop?

No.

Boxia and StepUp assist the foot while they are fitted. They do not repair a damaged nerve or directly treat the disease or injury causing the weakness.

Treatment depends on the cause and may include:

• Physiotherapy
• Activity modification
• An AFO or brace
• Treatment of nerve compression
• Management of diabetes or neuropathy
• Functional electrical stimulation
• Surgery in selected cases
• Neurological rehabilitation

Foot drop can sometimes improve, but it can also persist. A medical assessment is needed to understand the likely cause and outlook.

How Should the Correct Support Feel?

The correct device should provide a noticeable upward assistance without creating painful or excessive tension.

When walking, it should:

• Help the toes clear the floor
• Avoid forcing the foot sharply upwards
• Keep straps secure
• Avoid slipping around the calf or ankle
• Avoid pulling the shoe out of position
• Allow the heel to remain stable
• Avoid pressure across the toes
• Feel controlled rather than restrictive

The support should not cause:

• Pain
• Numbness
• Tingling
• Skin damage
• Swelling
• Foot discolouration
• A feeling that the knee is being pushed backwards
• Increased instability
• New difficulty placing the heel or foot on the floor

More strap tension does not always produce safer walking.

Simple Boxia Fit Check

Before walking in Boxia, confirm that:

• The ankle cuff is positioned correctly
• The cuff is secure without digging in
• The gel areas sit flat
• The shoe attachment is secure
• The traction strap is centred
• The strap is not twisted
• The tension assists toe clearance
• The shoe remains securely fastened
• The foot is not being pulled into an uncomfortable angle
• Clothing does not catch the strap
• The product is not used where latex must be avoided

Simple StepUp Fit Check

Before walking in StepUp, confirm that:

• The calf band sits flat
• The touch-close fastenings are secure
• The foot component is correctly positioned
• The straps follow the intended pathway
• No strap is twisted
• The anti-slip areas contact the intended surface
• Tension feels even
• The toes clear more easily
• The foot remains stable inside footwear
• Excess universal material has been trimmed only as instructed
• The skin is comfortable beneath every contact area

Choose Boxia When…

Boxia may be the stronger choice when:

• You normally use secure footwear
• You prefer the lifting force to connect directly to the shoe
• You want minimal full-foot material inside the shoe
• You want a choice of black or beige
• You need adjustable elastic dorsiflexion assistance
• You are already familiar with the Boxia system
• You may benefit from its separate shoeless attachment
• Latex is not a concern

Choose StepUp When…

StepUp may be the stronger choice when:

• You require a latex-free product
• You want one system for use with and without footwear
• You prefer soft textile components
• You want a trimmable universal option
• You need a discreet support beneath clothing
• Mild medio-lateral assistance may be beneficial
• You do not want a full rigid footplate
• You prefer touch-close fastenings and a calf-band design

Recommended Latex-Free Option

The StepUp® Drop Foot Support, SKU SU, is a strong option for people managing flaccid foot drop who want lightweight dorsiflexion assistance without a rigid AFO.

Its features include:

• Soft textile construction
• Dynamic upward foot assistance
• A calf support band
• Adjustable touch-close straps
• Anti-slip silicone beading
• Use with or without footwear
• Standard and universal sizing options
• A discreet design beneath clothing
• Latex-free materials

Boxia remains an excellent alternative when a shoe-connected traction system, lower ankle cuff and established Boxia fitting method are preferred.

The final choice should be based on the wearer’s complete presentation rather than appearance or price alone.

When Should You Seek Medical Advice?

See a GP or other healthcare professional if you find it difficult to lift the front of your foot or toes, particularly when the weakness is new or has not been diagnosed.

Seek urgent or emergency help when foot or leg weakness occurs with:

• Facial weakness
• Arm weakness
• Slurred or confused speech
• Sudden severe headache
• Loss of balance or coordination
• Severe or worsening back pain
• Numbness around the genitals, buttocks or inner thighs
• Difficulty starting or controlling urination
• Loss of bladder or bowel control
• Rapidly worsening weakness
• A significant recent injury

Do not rely on a brace to conceal new neurological weakness without finding out what is causing it.
