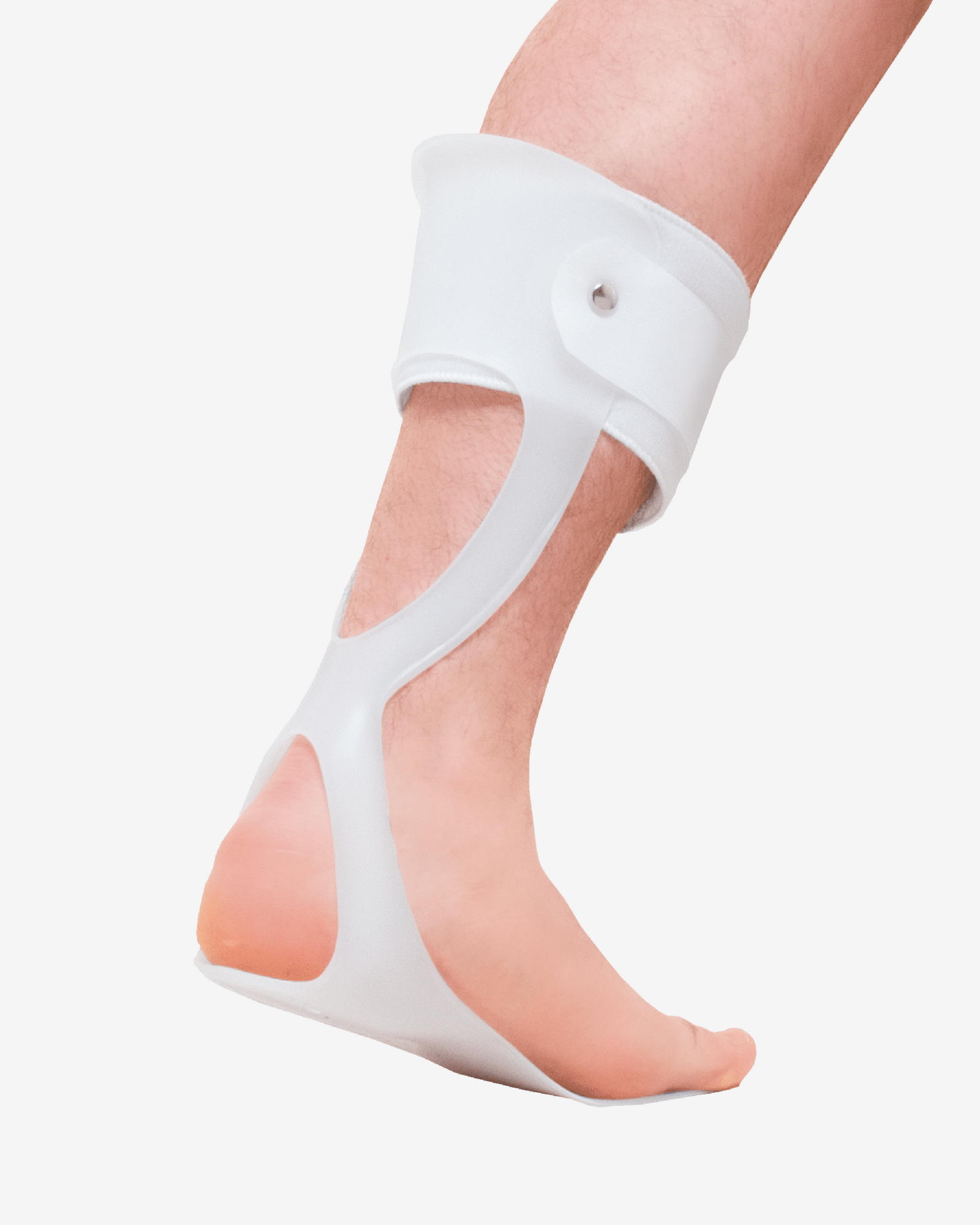

How Should a Foot Drop Brace Fit?

A foot drop brace should hold the foot and lower leg securely enough to assist walking without causing pain, rubbing or excessive pressure.

The correct fit depends partly on the type of support being used. A soft textile device such as Boxia® or StepUp® fits differently from a rigid plastic, carbon or leaf-spring ankle-foot orthosis.

Regardless of design, a correctly fitted foot drop brace should:

• Remain securely positioned
• Help improve toe clearance
• Avoid sliding or rotating
• Keep the heel stable
• Allow suitable footwear to fasten correctly
• Avoid painful pressure over the ankle bones
• Avoid numbness or tingling
• Avoid damaging the skin
• Feel controlled rather than restrictive
• Improve rather than worsen walking stability

A brace that is painfully tight is not necessarily providing better support. Equally, a brace that moves freely around the leg may not control the foot reliably.

What Should a Foot Drop Brace Feel Like?

A properly fitted brace should feel close and secure.

You should normally be aware that it is supporting the foot, particularly when you lift the leg during walking, but it should not cause sharp pain or concentrated pressure.

The brace should not:

• Dig into the calf
• Cut into the front of the ankle
• Press painfully against the ankle bones
• Force the toes into the front of the shoe
• Cause the heel to lift
• Make the foot numb
• Restrict circulation
• Produce blisters or broken skin
• Pull the foot sharply to one side
• Make the knee feel unstable

Rigid AFOs are designed to fit closely around the foot and ankle, especially near the ankle bones, but this close fit still needs to remain comfortable and safe.

The Heel Should Be Fully Seated

Correct heel position is one of the most important parts of fitting a rigid AFO.

The heel should sit:

• Fully down inside the brace
• Firmly against the rear section
• Centred rather than tilted
• In contact with the heel area of the footwear
• Without a large gap beneath or behind it

If the heel is not fully seated, the rest of the brace may appear too tall, too tight or incorrectly shaped.

A lifted heel can also cause:

• Pressure around the ankle
• The calf strap to sit too high
• The footplate to move forwards
• The toes to become crowded
• Increased rubbing
• Poorer foot control
• The brace to move inside the shoe

When fitting an AFO, bend the knee and guide the heel firmly into the rear of the brace before fastening the straps. NHS fitting guidance similarly advises ensuring that the heel is in firm contact with the back of the AFO before the device is secured.

How Should the Calf Strap Fit?

The calf strap should stabilise the upper section of the AFO without cutting into the leg.

It should:

• Lie flat
• Sit at the intended calf height
• Avoid twisting
• Feel secure
• Prevent excessive movement
• Avoid trapping clothing or sock folds
• Allow normal circulation
• Remain comfortable while sitting and walking

A strap that is too loose may allow the brace to move away from the leg or rotate.

A strap that is excessively tight may cause:

• Deep pressure marks
• Numbness
• Tingling
• Swelling below the strap
• Pain
• Skin irritation
• Difficulty tolerating the brace for normal periods

The strap should secure the brace rather than act as a tourniquet.

Do not add knots, pins or improvised fastenings to shorten a worn strap. Replace damaged or ineffective straps with compatible components.

How Should the Brace Fit Around the Ankle Bones?

The inside and outside ankle bones are common pressure areas.

The brace should follow the shape of the ankle without creating a hard edge directly against a prominent bone.

Check for:

• Concentrated pressure
• Pinching
• Rubbing
• A gap on one side and pressure on the other
• The ankle sitting too far forwards
• The brace twisting around the lower leg

Some mild marking can occur because an AFO needs close contact to control movement. However, the mark should fade after the brace is removed.

Persistent redness, pain or skin damage around either ankle bone suggests that:

• The heel may not be fully seated
• The brace may be the wrong size
• The wrong left or right model may have been selected
• The footwear may be distorting the brace
• The AFO may require professional modification
• Swelling or body shape may have changed

Do not place thick improvised padding inside the brace to cover the problem. Extra material can create further pressure elsewhere and change the position of the foot.

How Should the Footplate Fit?

A rigid or leaf-spring AFO may include a footplate extending beneath part or all of the foot.

The footplate should:

• Lie flat inside the footwear
• Follow the direction of the foot
• Avoid curling or buckling
• Avoid pushing the toes upwards
• Avoid extending painfully beyond the toes
• Avoid pressing into the sides of the shoe
• Remain stable during walking

The toes should have sufficient room within the footwear and should not be compressed against the front or sides.

A footplate that is too wide may distort when placed into a narrow shoe. A footplate that is too long may crowd the toes or prevent the heel sitting correctly.

Some stock AFOs have footplates specifically designed to be trimmed. This should be carried out carefully and in accordance with the manufacturer’s instructions, preferably by an orthotist or suitably qualified clinician.

Do not cut, grind, heat or reshape a brace simply because it feels uncomfortable. NHS guidance advises users not to modify or repair their AFO themselves.

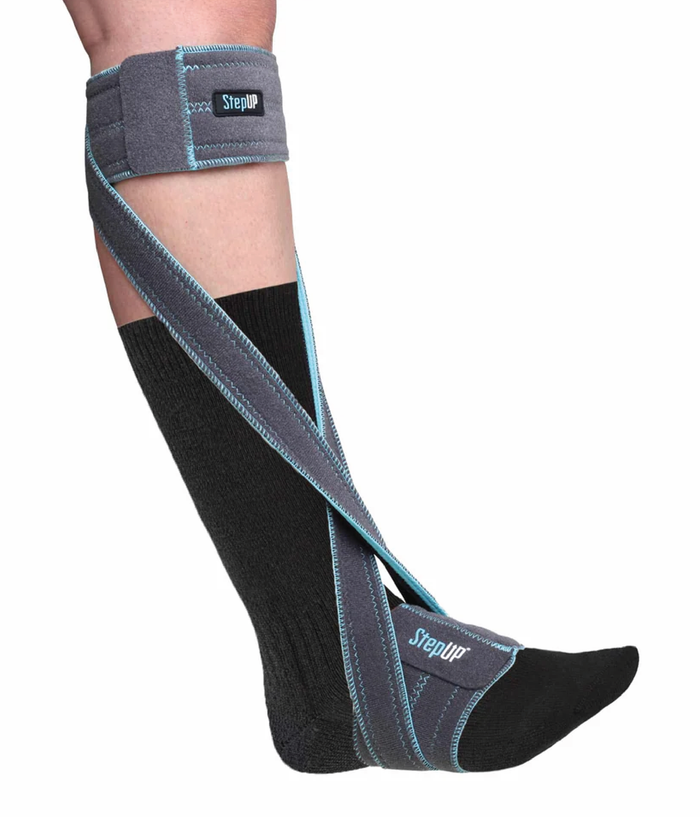

How Should a Textile Foot Drop Support Fit?

Textile foot drop supports such as Boxia® and StepUp® do not usually surround the entire lower leg and foot with rigid plastic.

Their fit therefore needs to be assessed differently.

A textile support should:

• Sit at the intended height on the ankle or calf
• Remain level
• Have flat, untwisted straps
• Apply an upward pull in the correct direction
• Avoid pulling the foot sharply inwards or outwards
• Avoid sliding down the leg
• Avoid rubbing the front of the ankle
• Remain stable inside or against the footwear
• Assist toe clearance without excessive tension

The lifting strap should provide enough assistance to help the forefoot clear the ground.

Too little tension may allow continued toe dragging.

Too much tension may:

• Pull the shoe upwards excessively
• Place pressure across the ankle
• Alter heel contact
• Make the foot feel unstable
• Cause discomfort
• Interfere with normal foot placement

More tension is not always better. The correct amount is the minimum needed to provide useful assistance while maintaining a comfortable and controlled walking pattern.

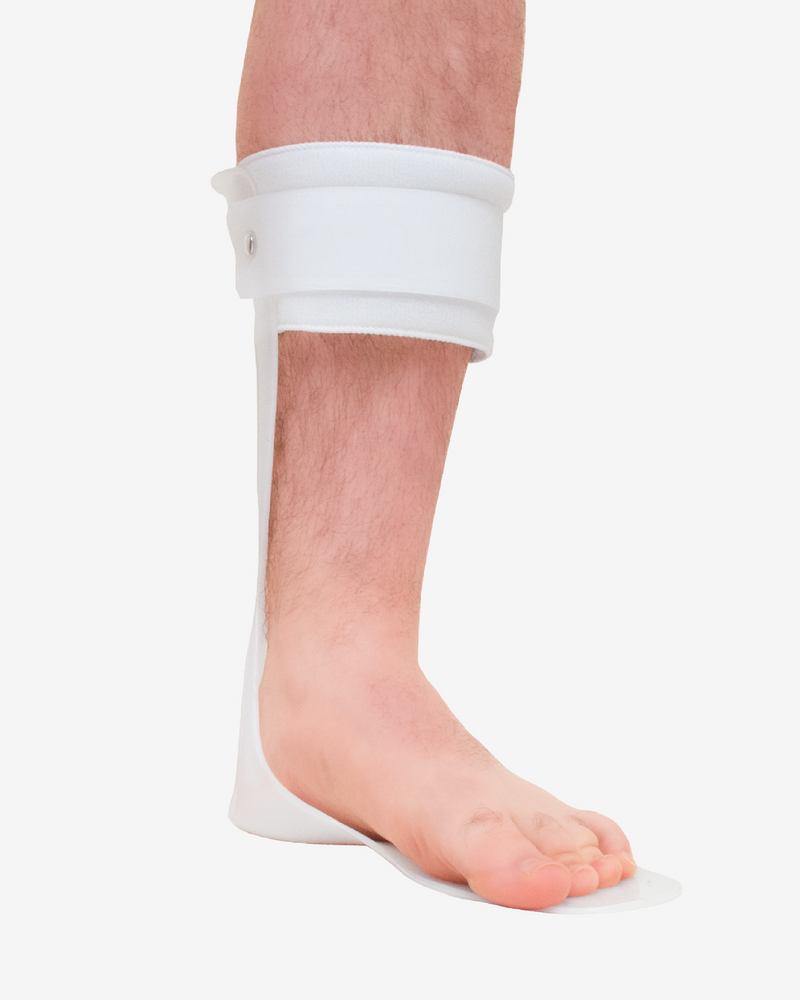

How Should a Rigid AFO Fit?

A rigid or semi-rigid AFO normally extends from beneath the foot to the lower leg.

It should:

• Match the correct foot
• Hold the heel securely
• Sit centrally behind the calf
• Fit closely around the ankle
• Avoid pressing into bony areas
• Remain stable within the footwear
• Avoid visible cracking or distortion
• Allow straps to fasten without excessive pulling

The shape and stiffness of the AFO influence more than toe clearance. Depending on the design, it may also affect ankle movement, knee position, balance and the way the foot contacts the floor.

This is why a stronger or more rigid brace should not be chosen solely because it appears more supportive.

An orthotist may need to assess:

• Muscle strength
• Ankle range of movement
• Spasticity
• Knee control
• Foot alignment
• Balance
• Sensation
• Walking speed
• Footwear
• Daily activities

Make Sure You Have the Correct Side

Many rigid AFOs are supplied as separate left- and right-foot products.

A left AFO should not be worn on the right foot or vice versa.

Signs that the incorrect side may have been selected include:

• The footplate shape not matching the foot
• The upright sitting at the wrong side
• Pressure against one ankle bone
• The heel sitting unevenly
• The brace twisting
• Poor alignment within the shoe
• The foot being pushed inwards or outwards

Check the product label, packaging and shape before use.

For bilateral foot drop, one complete brace is usually required for each side. The strength, size or design may not necessarily be identical because each leg can present differently.

Wear a Suitable Sock With a Rigid AFO

A thin, smooth sock is normally recommended between the skin and a rigid AFO.

The sock should:

• Extend above all brace edges
• Fit smoothly
• Avoid thick seams
• Avoid wrinkles
• Help manage moisture
• Allow the brace to remain close to the skin
• Be changed when damp

Avoid socks that bunch beneath the heel, calf strap or ankle areas.

Thick socks are not always better. Excess material can increase pressure inside the brace or make the footwear too tight.

NHS AFO guidance advises wearing a thin cotton sock beneath the brace and checking that the heel is properly positioned before fastening the straps.

The Footwear Is Part of the Fit

A correctly sized AFO can still fit badly if the footwear is unsuitable.

The shoe should have:

• Adequate width
• Adequate depth
• A secure back
• Adjustable laces or touch-close straps
• A stable sole
• Enough room for the foot and AFO
• An opening wide enough to insert the brace
• A heel height compatible with the AFO design

Loose, backless, shallow or high-heeled footwear can prevent the brace from working correctly.

The footwear should hold the foot and brace together as one stable unit.

Check that:

• The heel does not lift
• The shoe fastens fully
• The AFO is not being squeezed sideways
• The footplate lies flat
• The toes have space
• The shoe does not bulge or distort
• Walking feels stable

Removing the shoe’s original insole can sometimes create more depth, but only do this when it does not leave the foot unsupported or interfere with the intended fit.

NHS guidance commonly recommends wide, deep footwear with adjustable laces or straps and, where appropriate, a removable insole to accommodate an AFO.

Should You Buy Larger Shoes for an AFO?

Not automatically.

A shoe that is too long may allow the foot to slide forwards, make the heel unstable and create a trip hazard.

Instead of focusing only on a larger numerical size, look for the correct combination of:

• Length
• Width
• Depth
• Adjustable fastening
• Heel security
• Sole stability
• A removable insole
• A wide-opening tongue

Some people need a wider or deeper version of their usual size rather than a significantly longer shoe.

Try the shoe with:

• The intended sock
• The AFO
• Any authorised insole
• The fastening secured
• Both standing and walking

How Tight Should the Shoe Be Around the Brace?

The footwear should fasten securely without crushing the brace or foot.

It should not cause:

• Toe pressure
• Numbness
• Tingling
• Foot discolouration
• Pain across the instep
• The AFO to bend or distort
• The heel to lift
• Pressure at the sides of the foot
• Difficulty fastening the shoe

A shoe that is left loose to accommodate the brace may be just as unsuitable as one that is excessively tight.

The fastening should hold the heel and AFO securely while leaving enough space for normal comfort.

Check the Fit While Sitting and Standing

A brace may feel acceptable while seated but behave differently when weight is placed through it.

Check the fit while:

• Sitting
• Standing
• Walking on level ground
• Turning
• Climbing a small step where safe
• Wearing your normal clothing
• Wearing the intended footwear

When standing, confirm that:

• The heel remains down
• The calf strap stays flat
• The brace does not rotate
• The foot is not pushed painfully sideways
• The shoe remains stable
• The knee does not feel forced backwards
• The toes are not compressed

When sitting, confirm that:

• The calf strap does not cut into the leg
• The brace edge does not press behind the knee
• The heel remains in position
• The footwear remains comfortable
• No new numbness develops

Watch How You Walk

A correctly fitted foot drop brace should assist walking rather than simply feel tight.

Look for whether:

• The toes clear the floor more easily
• The foot lands in a controlled way
• The shoe remains on the heel
• The brace stays centred
• The knee remains stable
• You do not need to lift the hip excessively
• The foot is not being pulled too far upwards
• The stride feels safer and more natural

A brace may need review if it causes:

• Knee hyperextension
• The knee to buckle
• Hip hiking
• Circumduction of the leg
• Increased limping
• New pain
• Reduced balance
• The foot to land heavily
• The foot to turn inwards or outwards

Foot drop can be part of a wider walking problem. Supporting the ankle alone may not address weakness at the knee, hip or trunk.

How Much Redness Is Normal?

A close-fitting AFO can leave mild temporary pressure marks after removal.

These should begin to fade reasonably quickly.

Check the skin every time the brace is removed, particularly around:

• The ankle bones
• The heel
• The calf strap
• The top of the foot
• The sides of the foot
• The toes
• The edge of the footplate

NHS guidance advises seeking review when redness persists beyond approximately 20 to 30 minutes, or when there is pain, blistering, broken skin or increased rubbing. Pressure changes may be more difficult to identify on darker skin, so also check for warmth, swelling, tenderness or changes in skin texture.

Introduce a New AFO Gradually

Do not assume that a new rigid AFO should immediately be worn for an entire day.

The foot, skin, muscles and walking pattern may need time to adapt.

Begin with shorter periods in a safe environment and gradually increase wear according to the instructions provided by your orthotist, physiotherapist or product guidance.

During the introduction period:

1. Fit the brace carefully.
2. Wear it for the recommended period.
3. Remove the brace and sock.
4. Inspect the entire foot and lower leg.
5. Allow temporary marks to fade.
6. Check for pain or rubbing.
7. Increase wear only when the skin remains healthy.

Different NHS services use slightly different wearing-in schedules, so follow the plan given for your own brace rather than applying one universal timetable. The consistent guidance is to begin gradually and check the skin regularly.

Signs the Brace May Be Too Tight

The brace, strap or footwear may be too tight if you experience:

• Pain
• Numbness
• Tingling
• Swelling below a strap
• Deep pressure marks
• Persistent redness
• Blistering
• Skin discolouration
• A cold foot
• Toes pressed against the shoe
• Difficulty fastening the footwear
• A throbbing sensation
• Increased discomfort while sitting

Remove the brace and inspect the skin.

Do not continue tightening other parts of the brace to compensate for one painful area.

Signs the Brace May Be Too Loose

The brace may be too large, too loose or incorrectly fitted if:

• The heel lifts
• The calf section moves away from the leg
• The AFO rotates
• Straps repeatedly loosen
• The foot slides on the footplate
• The brace moves inside the shoe
• Toe clearance remains poor
• The support makes clicking or movement noises
• The shoe slips at the heel
• You need to readjust it repeatedly
• The foot turns inwards or outwards

Tightening one strap may not solve a sizing or footwear problem.

What if the Brace Rubs?

Rubbing can be caused by:

• A sock wrinkle
• A loose strap
• An overtight strap
• The heel not being fully seated
• Incorrect footwear
• The wrong brace size
• The wrong left or right side
• A damaged edge
• A worn pad
• Swelling
• A change in weight
• A change in walking pattern

Remove the brace and check the location of the irritation.

Do not continue wearing it over broken skin.

Do not apply thick pads, dressings or folded fabric unless instructed, because these additions can alter the pressure elsewhere.

Persistent rubbing requires assessment by an orthotist or another suitably qualified professional.

What if the Brace Causes Numbness or Tingling?

Numbness or tingling is not a normal sign that the support is working.

It may indicate:

• Excessive strap tension
• Local nerve pressure
• Footwear that is too tight
• Swelling
• Incorrect brace position
• An underlying neurological problem

Remove the brace, inspect the foot and allow the symptoms to settle.

Seek professional advice if the sensation persists, repeatedly returns or is accompanied by weakness, swelling, colour change or pain.

Take Extra Care With Reduced Sensation

People with neuropathy or reduced skin sensation may not feel pressure building beneath an AFO.

This can occur with conditions such as diabetes or some neurological disorders.

Extra precautions may include:

• More frequent skin checks
• Using a mirror
• Asking another person to inspect the skin
• Shorter initial wearing periods
• Regular professional review
• Checking footwear for foreign objects
• Monitoring temperature and swelling
• Avoiding use over broken skin

Do not rely on pain alone to identify a fitting problem.

Should the Brace Be Modified at Home?

Generally, no.

Do not:

• Heat the brace with a hairdryer
• Place it in hot water
• Cut the plastic with household tools
• File rough areas
• Drill new holes
• Add permanent padding
• Bend carbon components
• Glue cracked sections
• Alter the straps with pins or knots

Some stock products are intentionally designed with trimmable or heat-modifiable components. These features do not mean every user should modify the product themselves.

The Ankle Foot Orthosis Light has a trimmable footplate and heat-modifiable polypropylene construction, but any significant alteration is best undertaken by a qualified professional familiar with the product. Orthotix confirms these adjustable features, while NHS guidance advises patients not to modify or repair an AFO independently.

Check for Damage and Wear

Before fitting the brace, inspect it for:

• Cracked plastic
• White stress marks
• Splintered carbon
• Loose rivets
• Worn straps
• Weak touch-close fastening
• Flattened padding
• Sharp edges
• Stretched elastic
• Damaged shoe attachments

A damaged brace may no longer provide the intended level of support.

Do not continue wearing a cracked or structurally damaged AFO until it has been assessed.

Can Body Changes Affect the Fit?

Yes.

The fit may change because of:

• Weight gain or loss
• Leg swelling
• Reduced muscle bulk
• Changes in muscle tone
• Surgery
• Injury
• Changes in walking ability
• New footwear
• Growth in younger users

Arrange a review if a previously comfortable brace begins to:

• Rub
• Move
• Feel ineffective
• Become difficult to fasten
• Cause pressure
• Alter the position of the foot
• Affect the knee differently

Do not assume the brace has simply “worn in” when the fit changes significantly.

Recommended Rigid Foot Drop AFO

The Ankle Foot Orthosis Light, SKU AFO, is a lightweight prefabricated leaf-spring brace designed for flaccid foot drop.

Its features include:

• Dorsiflexion assistance
• Lightweight polypropylene construction
• A low-profile design
• A trimmable full-length footplate
• An open heel
• A detachable padded calf band
• Separate left- and right-foot versions
• Small through X Large sizing
• Compatibility with suitable supportive footwear
• Professional heat modification where required

The product contains latex, so an alternative should be considered where latex must be avoided.

The Ankle Foot Orthosis Light may be suitable where a more structured in-shoe support is wanted than a soft textile lifting device.

People with significant spasticity, a fixed ankle position, severe instability or more complex neurological needs should obtain professional assessment before choosing a prefabricated leaf-spring AFO.

Simple Foot Drop Brace Fit Check

Before walking, confirm that:

• You have the correct brace type
• You have the correct left or right side
• The heel is fully seated
• The brace is centred
• The calf strap lies flat
• No strap is twisted
• The footplate lies smoothly
• The sock is wrinkle-free
• The footwear is wide and deep enough
• The shoe fastens securely
• The toes have room
• The brace does not press painfully on the ankle bones
• Toe clearance is improved
• The knee feels stable
• There is no numbness or tingling
• The skin is checked after use
• The product’s latex content is suitable for you

Can a Correctly Fitted Brace Cure Foot Drop?

No.

A brace assists the position and movement of the foot while it is being worn. It does not repair the nerve, muscle, brain or spinal condition causing the weakness.

The NHS identifies braces, splints and shoe inserts as possible treatments for helping hold the foot in position, alongside options such as physiotherapy, electrical stimulation and treatment of the underlying cause.

When Should Foot Drop Be Medically Assessed?

See a GP if you find it difficult to lift the front of your foot or toes.

Assessment is particularly important when:

• The weakness is new
• It is getting worse
• Both feet are affected
• Numbness is present
• You are falling more frequently
• It followed surgery or injury
• You have severe back pain
• The brace no longer controls the foot
• Other parts of the leg are becoming weak

The NHS advises arranging a GP assessment whenever lifting the front of the foot or toes becomes difficult.

Seek emergency help if sudden foot or leg weakness occurs with:

• Facial weakness
• Arm weakness
• Speech difficulty
• Sudden confusion
• Loss of coordination
• Severe back pain with saddle-area numbness
• New loss of bladder or bowel control
• Rapidly worsening weakness

Do not use a brace as a substitute for investigating new neurological symptoms.
