Start with an appropriate assessment
Tennis elbow usually causes pain on the outer side of the elbow that is aggravated by gripping and resisted wrist movement. Similar pain can arise from injury, nerve irritation or other joint and tendon problems. If symptoms are severe, began after trauma or are accompanied by swelling, numbness or loss of movement, assessment should come before choosing a support.

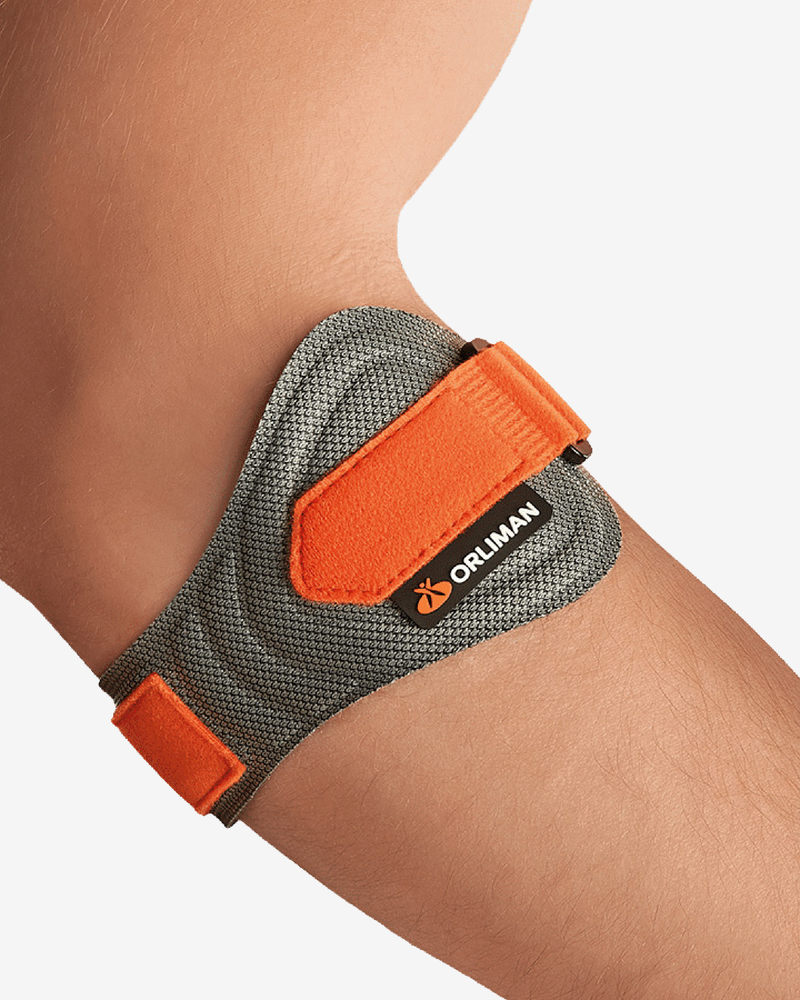

Epicondylitis straps
An epicondylitis strap, band or clasp is worn around the upper forearm below the elbow. Many include a pad that applies targeted pressure over the forearm extensor muscle area. This may alter load through the tendon attachment during gripping or sport while leaving the elbow free to bend.
Straps are compact and adjustable, but position is important. They should not sit directly on the outer elbow bone or cross the elbow crease. NHS orthotic guidance commonly places the device around two finger widths below the crease, although the supplied instructions and individual fitting advice should take priority.
Flexible elbow sleeves
A sleeve provides compression around the elbow and may offer warmth, comfort and light support. Woven models can include viscoelastic pads or zones of varied compression. A sleeve covers more area than a strap and may be preferred when general joint support is wanted.
The pressure is less focused than a strap. A sleeve must be the correct size and should not fold behind the elbow or roll at its edges. It should allow comfortable movement unless a clinician has advised otherwise.
Rigid braces are not routine tennis elbow supports
Elbow immobilisers and hinged ROM braces are used for different purposes, commonly after surgery, fracture or significant injury. They should not be selected simply because tennis elbow pain feels severe. Unnecessary movement restriction can contribute to stiffness and does not address the loading pattern that may be driving symptoms.
Use during activity
A strap or sleeve may be tried during the task that usually provokes symptoms, beginning at a lighter level. The support should stay in position without excessive tightening. It is intended to assist sensible load management, not make it safe to continue every painful activity.
Consider equipment and technique as well. Increasing a tool or racquet grip size, reducing repetitive force and spacing demanding tasks may help. A physiotherapist can advise on progressive strengthening when appropriate.
How tight should the support be?
The support should feel firm and secure but comfortable. The hand should remain warm and normally coloured, and there should be no new tingling or numbness. Recheck fit as muscles expand during activity and if swelling changes.
- Follow the exact measuring point in the product guide.
- Position any pressure pad over muscle, not bone.
- Start with short periods of wear.
- Inspect the skin after removal.
- Do not sleep in a new support unless advised.
How long should it be used?
There is no universal wearing schedule. Some orthotic services advise epicondylitis clasps during daytime aggravating activity and removal at night, but individual advice may differ. If a clinician fitted the device, follow their schedule. Review ongoing need rather than wearing it indefinitely without assessing symptoms and function.
When to arrange further help
Arrange assessment if pain is getting worse, keeps returning, affects normal activities or has not improved after several weeks of sensible self-care. Persistent tingling, grip weakness or pain extending from the neck also deserves review. Urgent advice is needed for deformity, severe swelling, inability to move or altered circulation after injury.
Sources and further guidance
- The Rotherham NHS Foundation Trust: Epicondylitis brace
- Northern Care Alliance: Epicondylitis clasps
- NHS: Elbow and arm pain
This guide provides general information and does not replace individual medical advice.
