Knee Immobiliser vs ROM Knee Brace: What’s the Difference?

A knee immobiliser and a range of motion (ROM) knee brace both provide structured support, but they do different jobs. A knee immobiliser is designed to restrict knee movement, while a ROM brace can allow bending and straightening within controlled limits.

Both may be used following certain injuries or operations, but they are not automatically interchangeable. The appropriate brace depends on how much movement is considered safe at that stage of recovery.

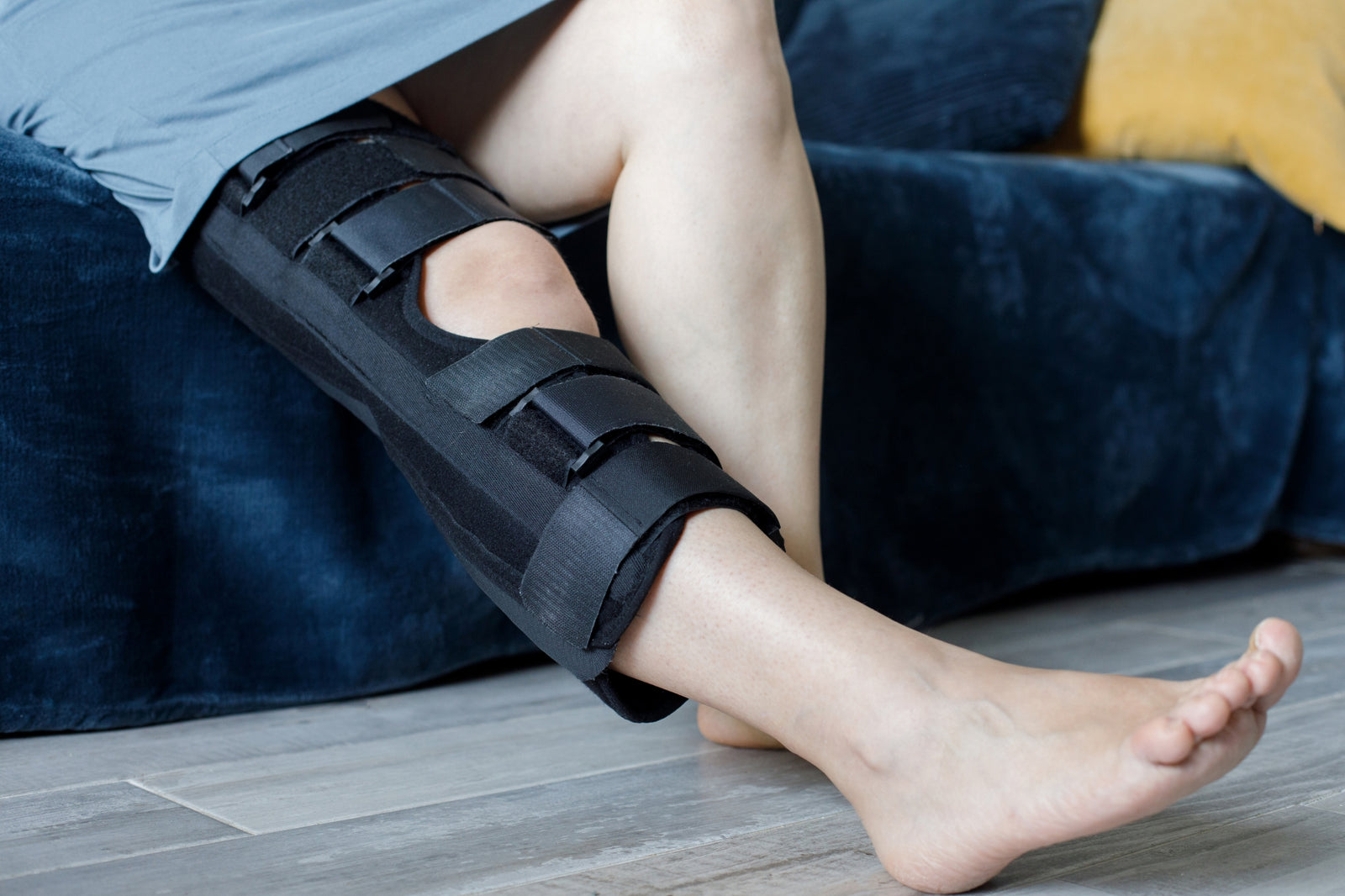

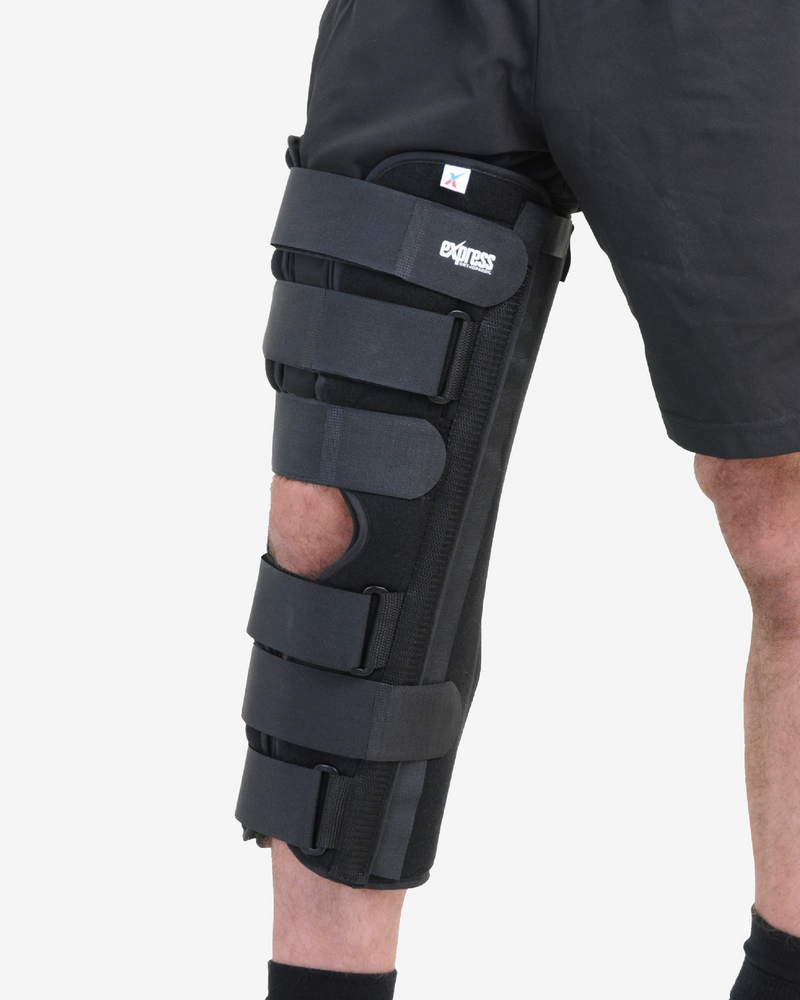

What is a knee immobiliser?

A knee immobiliser is a rigid or semi-rigid support designed to hold the knee in a relatively fixed position and prevent or substantially reduce bending.

Most designs use supportive stays running along the leg, together with adjustable straps that secure the immobiliser around the thigh, knee and lower leg.

The aim is to provide stability when knee movement needs to be restricted rather than simply supported.

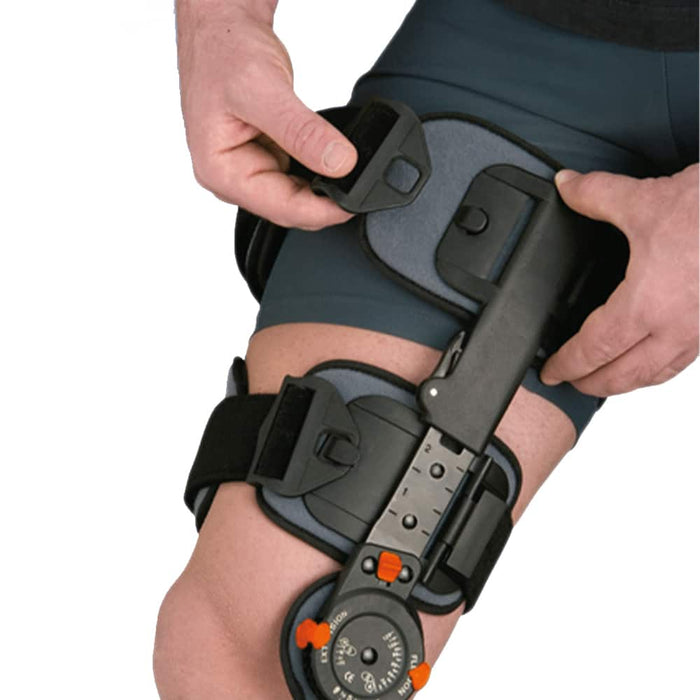

What is a ROM knee brace?

A ROM knee brace uses hinges at either side of the knee to provide support while controlling how far the joint can bend or straighten.

Depending on the brace, flexion and extension limits can be adjusted as rehabilitation progresses. Some ROM braces can also be temporarily locked in a particular position when required.

What is the main difference?

When might a knee immobiliser be used?

A knee immobiliser may be used when restricting movement is an important part of protecting the knee. This can include some injuries, fractures, post-operative situations or periods following removal of other forms of immobilisation.

The exact reason for immobilisation will determine how long the support is required and whether weight-bearing or walking is appropriate.

When might a ROM knee brace be used?

A ROM brace may be considered when the knee still requires substantial support, but completely preventing movement is no longer the aim.

Adjustable hinges allow rehabilitation to take place within defined movement limits. Those limits may sometimes be altered as healing and rehabilitation progress.

Can a ROM brace completely immobilise the knee?

Some ROM braces include locking settings that can hold the knee at a particular angle, including full extension depending on the design.

That does not automatically make every ROM brace a direct replacement for a knee immobiliser. The design, length, rigidity and reason for using the brace are also important.

If you have specifically been told to use an immobiliser, check before changing to a different type of brace.

Is a hinged knee brace the same as a ROM brace?

Not always. A standard hinged knee support typically uses hinges to provide medial and lateral stability while allowing relatively natural bending and straightening.

A ROM brace adds the ability to restrict or control that movement through adjustable flexion or extension settings.

This makes ROM braces particularly useful when the permitted movement of the knee forms part of a rehabilitation plan.

Which brace is used after knee surgery?

There is no single brace used after every knee operation. Some procedures may require no brace, while others may involve an immobiliser, ROM brace or another specialist support.

Where a brace has been prescribed, its purpose and settings depend on the operation performed and the stage of rehabilitation.

Follow the post-operative instructions provided by your surgical or rehabilitation team rather than choosing a brace based only on the type of surgery.

Can you walk in a knee immobiliser?

Whether walking is appropriate depends on the injury and any weight-bearing restrictions you have been given.

Wearing an immobiliser does not automatically mean it is safe to place full weight through the affected leg. If you have been given crutches or specific weight-bearing instructions, continue to follow them.

Can you walk in a ROM knee brace?

ROM braces are commonly designed to allow mobility while the knee remains supported, but the permitted level of walking and weight-bearing is still determined by the underlying injury or operation.

A brace can control movement at the knee, but it cannot determine how much load injured or healing tissues are ready to tolerate.

Which is more restrictive?

A knee immobiliser is generally the more restrictive option because its purpose is to minimise knee movement.

A ROM brace is designed to provide more flexibility by allowing movement within selected limits.

More restriction is not automatically better. The right amount of movement depends on what needs to be protected and the stage of recovery.

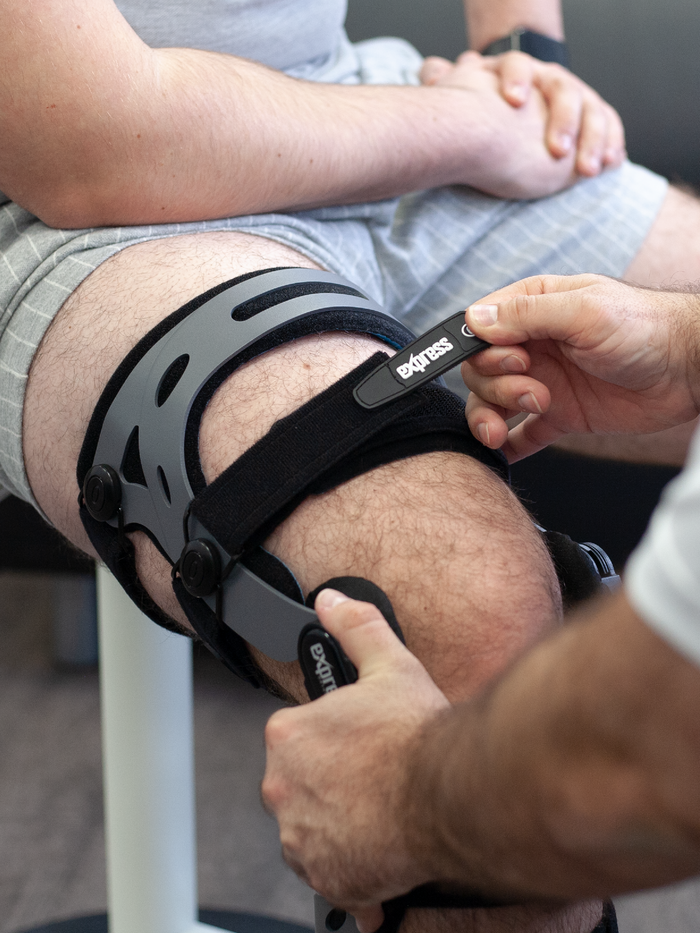

How should each brace fit?

Knee immobiliser

The immobiliser should sit securely around the leg with its supportive stays correctly positioned. Straps should hold it firmly without causing numbness, tingling or excessive pressure.

ROM knee brace

A ROM brace also needs its hinges correctly aligned alongside the knee. The brace should remain in position when you move rather than sliding down or rotating around the leg.

If your ROM brace includes telescopic side bars, these may also require adjustment to suit the length of the leg.

What should you check during wear?

When might you change from an immobiliser to a ROM brace?

During some rehabilitation programmes, the need for complete or near-complete immobilisation may reduce as healing progresses.

At that point, controlled movement may become appropriate and a ROM brace may sometimes be introduced.

The timing of this transition depends on the injury or operation and should be guided by the healthcare professional responsible for your rehabilitation.

When should you seek professional advice?

Seek advice if you are unsure which type of brace has been recommended, do not understand your ROM settings or cannot achieve a secure and comfortable fit.

You should also seek help if you experience increasing pain, substantial swelling, numbness, circulation changes, skin damage or a significant deterioration in your symptoms.

Choosing between a knee immobiliser and ROM brace

The key question is whether the knee needs to be immobilised or whether controlled movement is appropriate.

Immobilisers are designed to restrict movement, whereas ROM braces allow movement to be introduced within defined limits. Following significant injury or surgery, that decision should be based on your treatment plan rather than personal preference.
