Prefabricated vs Custom-Made AFO: Which Do You Need for Foot Drop?

An ankle-foot orthosis can be supplied as a prefabricated product or manufactured specifically for one individual.

Both approaches can provide effective support when selected for the correct reason.

A prefabricated AFO may be suitable when:

• The foot and lower leg fit an available standard size
• Foot drop is relatively straightforward
• The ankle remains flexible
• The heel can sit securely
• Side-to-side instability is limited
• The knee does not need complex control
• The wearer’s skin tolerates the brace
• The required function matches an existing product design

A custom-made AFO may be considered when:

• Standard sizes do not fit
• The foot or leg has an unusual shape
• The ankle is stiff or fixed
• Significant muscle tone or spasticity is present
• The foot turns strongly inwards or outwards
• The heel cannot be controlled
• The knee requires a specific mechanical effect
• Skin pressure or sensation creates additional risk
• Several previous braces have failed
• A particular joint, material, trim line or ankle angle is required

A bespoke device is not automatically better than a stock device. NHS orthotics guidance specifically explains that the two meet different needs: stock devices can work where measurements and anatomy fit the available design, while bespoke manufacture may be needed for difficult anatomy or highly specific function.

What Is a Prefabricated AFO?

A prefabricated AFO is manufactured in advance rather than being created from a cast or scan of one individual leg.

It is normally supplied in options such as:

• Small, Medium, Large or X Large
• Left or right
• Different stiffness levels
• Different strap arrangements
• Different materials
• Different footplate shapes

Examples include:

• Plastic posterior leaf-spring AFOs
• Reinforced polypropylene AFOs
• Carbon-fibre AFOs
• Textile foot-lifting supports
• Some hinged or dynamic braces

A prefabricated product can still require:

• Clinical selection
• Measurement
• Footplate trimming
• Strap adjustment
• Professional heat modification
• Footwear fitting
• Gait assessment

“Off the shelf” does not always mean that the device can be selected safely without professional input.

Dorset County Hospital notes that some stock orthoses are specialised products provided through qualified professionals rather than routine high-street supports.

What Is a Custom-Made AFO?

A custom-made AFO is designed and manufactured for one individual.

Its shape and mechanical features may be based on:

• Physical measurements

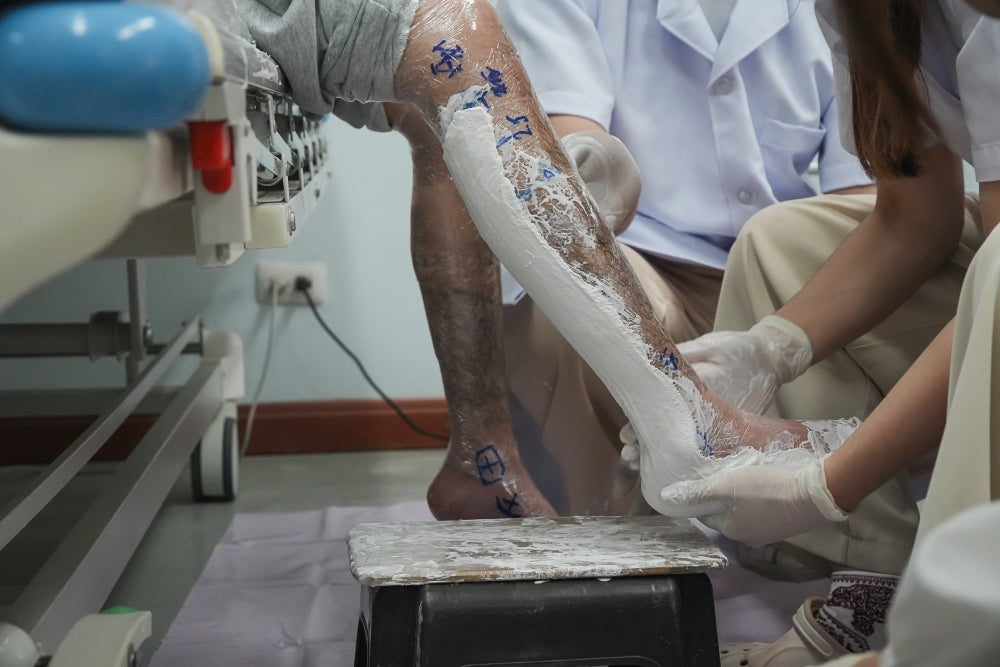

• A plaster cast
• A digital scan
• Photographs
• Video or gait observation
• Joint range
• Muscle strength
• Muscle tone
• Foot and ankle alignment
• Knee behaviour
• Body weight
• Activity goals
• Footwear

Custom-made does not describe one particular material or style.

A bespoke AFO may be:

• Flexible
• Rigid
• Hinged
• Dynamic
• Ground-reaction
• Posterior-opening
• Anterior-shell
• Plastic
• Carbon composite
• Fabric
• Lined
• Unlined
• Designed with additional straps or padding

The design is selected according to the clinical function rather than simply following a standard product shape.

NHS orthotics services use both ready-made and custom orthoses. Where bespoke manufacture is required, the process may involve additional measurements, casting or scanning followed by a later fitting appointment.

Does Custom-Made Mean Made Entirely by Hand?

Not necessarily.

Modern custom manufacturing may combine:

• Traditional casting
• Hand modification
• CAD design
• 3D scanning
• Digital modelling
• CNC or automated manufacturing
• 3D printing
• Thermoplastic forming
• Composite fabrication
• Hand finishing
• Clinical fitting

Within the PTH Group, Daceys manufactures bespoke lower-limb orthoses including AFOs and KAFOs and operates an in-house CAD/CAM laboratory alongside its traditional custom manufacturing capability.

The important distinction is not whether every stage is manual. It is whether the final device has been designed and manufactured for the individual prescription.

Is a Prefabricated AFO a Generic One-Size Brace?

Not always.

Some prefabricated AFOs are available in several:

• Sizes
• Sides
• Stiffness levels
• Designs
• Materials

For example, the Orthotix Ankle Foot Orthosis Extra is supplied in Small through X Large and separate left- and right-foot versions. It also has a trimmable footplate and optional heel-retaining strap, allowing a degree of professional adaptation within its standard design.

A correctly selected prefabricated AFO may fit one person very well.

A poorly selected custom AFO can also be uncomfortable or ineffective.

The labels “stock” and “custom” do not replace assessment of:

• Fit
• Function
• Comfort
• Walking
• Skin
• Footwear

Is Custom-Made Always Better?

No.

A bespoke device may be unnecessary when a prefabricated AFO already provides:

• Suitable toe clearance
• Stable heel position
• Appropriate ankle resistance
• Safe knee movement
• Acceptable comfort
• A reliable fit
• Suitable footwear compatibility

Custom manufacture can add:

• Time
• Appointments
• Cost
• Complexity
• A more involved fitting process

Those additions are justified when they provide a function or fit that a stock product cannot deliver.

Dorset County Hospital states directly that a bespoke orthosis is not necessarily better than a stock device; it meets a different need.

Is a Prefabricated AFO Lower Quality?

Not necessarily.

A prefabricated AFO may use:

• Medical-grade thermoplastic
• Carbon-fibre composite
• Carbon fibre
• Washable padding
• Adjustable straps
• Professionally trimmable components

The Orthotix Ankle Foot Orthosis Extra combines injection-moulded polypropylene with carbon-fibre composite reinforcement. It includes a padded detachable calf band, optional heel-retaining strap and trimmable footplate.

The relevant question is not whether the device was manufactured before the appointment.

It is whether its:

• Shape
• Size
• Stiffness
• Straps
• Footplate
• Indications

match the wearer’s needs.

When May a Prefabricated AFO Be Suitable?

A prefabricated AFO may be appropriate when the presentation is relatively uncomplicated.

This may include someone who has:

• Flaccid foot drop
• Dorsiflexion weakness during swing
• A flexible ankle
• A foot that can be positioned close to neutral
• Reasonably stable side-to-side alignment
• A heel that can remain seated
• No major fixed deformity
• No significant spasticity
• No complex pressure-management needs
• Foot and lower-leg measurements within a stock size
• Suitable footwear

The Orthotix AFO Extra is indicated for flaccid foot drop and swing-phase dorsiflexion weakness and may also provide control for mild tonal plantarflexion and mild knee hyperextension in suitable cases.

“Mild” is important. A prefabricated product should not be expected to manage every level of tone, instability or knee involvement.

When Might a Custom AFO Be Needed?

A custom-made AFO may be considered when a stock device cannot provide the required fit or function.

Common reasons include:

• Unusual lower-leg shape
• A very narrow or broad calf
• A prominent ankle bone
• Significant muscle wasting
• Foot deformity
• An ankle fixed away from neutral
• Strong inversion or eversion
• Substantial spasticity
• Complex knee behaviour
• Previous skin pressure
• Reduced sensation
• An unusual foot size
• Major asymmetry between sides
• A need for a specific hinge or mechanical joint
• A need for individual offloading
• Repeated failure of stock braces

An NHS orthotics service may recommend custom manufacture when anatomy is difficult to accommodate or the required mechanical function cannot be delivered by a stock device.

Does Foot Shape Affect the Decision?

Yes.

A stock AFO is built around an average shape for each size.

The wearer may have:

• A high or low arch
• A broad forefoot
• A narrow heel
• Prominent ankle bones
• A bony prominence
• A rotated foot
• Toe deformity
• Swelling
• Muscle wasting
• A difference between the left and right legs

A prefabricated brace may still fit where the difference is minor and the design can be appropriately adjusted.

A custom device may be needed when the shape causes:

• Gaps
• Rotation
• Pressure
• Heel lift
• Poor footplate contact
• Inability to fasten the straps
• Difficulty fitting footwear

Custom manufacture allows the shell and trim lines to be designed around the individual anatomy rather than asking the anatomy to fit a standard shell.

Does Calf Shape Matter?

Yes.

A calf cuff that is too large may:

• Slide down
• Rotate
• Require excessive tightening
• Provide inconsistent support

A cuff that is too small may:

• Barely fasten
• Cause pressure
• Sit at the wrong height
• Prevent the heel reaching its intended position

Some people have:

• Significant calf-muscle loss
• A very conical lower leg
• Swelling that changes during the day
• A large difference between both legs

A stock device may work where the straps and padding provide sufficient adjustment.

A custom calf section may be more appropriate where the shape cannot be contained securely.

Does Ankle Range of Movement Matter?

Yes.

A prefabricated AFO is designed around an expected ankle position.

If the ankle can move comfortably into that position, the heel should be able to sit at the back and bottom of the brace.

If the ankle is stiff or fixed, the wearer may experience:

• A gap beneath the heel
• Pressure at the front of the ankle
• Toes pushed forwards
• The calf shell moving away
• Knee hyperextension
• Knee bending
• Pain
• Skin damage

A custom AFO can be designed to accommodate an individual ankle angle rather than forcing the limb into a standard shape.

An AFO’s purpose can include positioning the foot, maintaining muscle length and assisting or resisting selected movements. The correct position should therefore follow assessment rather than being forced through tight straps.

What Is a Fixed Ankle Position?

A fixed position means that the ankle cannot be moved through the range required for a standard brace, even when the person is relaxed and another person gently attempts the movement.

This may result from:

• Contracture
• Calf or Achilles shortening
• Joint stiffness
• Long-term positioning
• Spasticity
• Pain
• Previous injury
• Surgery
• Structural deformity

Do not force a fixed ankle into a neutral prefabricated AFO.

A custom device may need to:

• Accommodate the available position
• Apply carefully controlled correction
• Use a particular ankle angle
• Include specific padding
• Work alongside stretching, physiotherapy or other treatment

Does Spasticity Mean You Need a Custom AFO?

Not always, but significant spasticity makes professional assessment more important.

Spastic foot drop may involve:

• Increased muscle tone
• Sudden stiffness
• The ankle pulling downwards
• The foot turning inwards
• Toe curling
• Movement changing with speed or effort
• Resistance to passive positioning

Some prefabricated products may manage mild tonal plantarflexion in carefully selected wearers. The Orthotix AFO Extra lists control of mild tonal plantarflexion among its indications.

A custom device may be more appropriate when:

• Tone is stronger
• The foot twists significantly
• The ankle angle needs precise control
• Standard straps cannot contain the movement
• Pressure becomes difficult to manage
• The knee is also affected

Do not choose the stiffest stock brace or tighten all straps to overpower spasticity.

Does Side-to-Side Instability Require a Custom AFO?

Not in every case.

Some structured prefabricated AFOs provide mild side-to-side assistance.

However, substantial inversion or eversion may require:

• More enclosed trim lines
• Individual heel containment
• A different strut arrangement
• A custom ankle strap
• A custom footplate
• A bespoke shell
• A hinged or rigid design

Signs that a stock brace may not provide enough control include:

• The foot landing on its outer edge
• The ankle rolling despite the AFO
• The heel moving sideways
• Pressure over one ankle bone
• The footplate moving within the shoe
• The knee becoming less stable
• Repeated trips despite improved dorsiflexion

The required brace needs to control the actual direction of instability, not merely lift the toes.

Does Knee Control Affect the Choice?

Yes.

An AFO affects the forces passing through the ankle and can influence the knee during standing and walking.

AFOs can therefore affect:

• Knee hyperextension
• Excessive knee bending
• Stability during stance
• Step length
• Balance
• Forward progression

NHS guidance explains that an AFO supports the foot and ankle but can also affect the knee, posture and balance.

A prefabricated AFO may be suitable for mild and predictable knee effects.

A custom device may be needed where:

• The knee repeatedly gives way
• Hyperextension is substantial
• A precise ankle angle is required
• A ground-reaction design is needed
• The stiffness must be individually tuned
• The wearer has complex weakness across several joints

A severe knee problem may require a different category such as a KAFO rather than an AFO alone.

What Is a Ground-Reaction AFO?

A ground-reaction AFO commonly uses an anterior shell and a controlled ankle-foot structure to influence the position of the knee during stance.

It may be considered where the goal includes:

• Improving knee extension control
• Reducing excessive knee flexion
• Improving stance stability
• Supporting a particular gait pattern

It is not simply a stronger version of a posterior leaf-spring brace.

Its:

• Ankle angle
• Shell position
• Footplate
• Stiffness
• Footwear relationship

need to be prescribed according to the individual walking pattern.

A bespoke design is often required where the effect on the knee must be precise.

What if the Knee Gives Way?

A knee may give way because of:

• Muscle weakness
• Pain
• Poor foot positioning
• Excessive ankle movement
• Neurological impairment
• Fatigue
• Reduced sensation

A prefabricated AFO may help when ankle control is one contributing factor.

A custom AFO or KAFO may be considered when the knee requires greater or more specific control.

Do not assume that a reinforced stock AFO will automatically prevent knee buckling.

What if the Knee Moves Backwards?

Knee hyperextension may be influenced by:

• The ankle position
• AFO stiffness
• Heel height
• Footwear
• Muscle weakness
• The wearer’s gait pattern

The AFO Extra lists mild knee hyperextension among its indications, but persistent or substantial hyperextension requires assessment of the complete leg.

A custom AFO may allow closer control of:

• Ankle angle
• Resistance
• Footplate alignment
• Heel height
• Calf-shell position

Do not add a heel lift or change brace angle without professional advice.

Does Skin Condition Affect the Decision?

Yes.

Both prefabricated and custom AFOs can create pressure.

A custom-made device may be considered when the wearer has:

• Prominent bones
• Fragile skin
• Scarring
• A previous pressure sore
• An ulcer history
• Unusual pressure distribution
• Difficulty tolerating standard trim lines

Custom manufacture may allow the orthotist to:

• Change shell shape
• Move an edge
• Add individual relief
• Select lining
• Alter straps
• Redistribute pressure

A custom device does not eliminate skin risk.

It still requires:

• Correct fitting
• Gradual introduction
• Suitable socks
• Regular inspection
• Review and adjustment

What if Sensation Is Reduced?

Reduced sensation makes fitting particularly important because the wearer may not feel:

• Rubbing
• Excessive strap pressure
• A folded sock
• A foreign object inside the shoe
• A developing blister
• Heat
• Skin breakdown

This may occur with:

• Diabetes
• Peripheral neuropathy
• Stroke
• Spinal conditions
• Multiple sclerosis
• Peripheral nerve damage

A soft-looking prefabricated brace is not automatically safer.

A custom device may provide better accommodation where pressure is difficult to manage, but it still requires frequent skin checks and professional review.

Does Diabetes Automatically Mean You Need a Custom AFO?

No.

The decision depends on:

• Sensation
• Circulation
• Skin
• Foot shape
• Ulcer history
• Swelling
• Alignment
• Footwear
• Required control

A person with diabetes and intact sensation, healthy skin and straightforward foot drop may fit a suitable stock device.

Someone with neuropathy, deformity, ulceration or high pressure risk may need a more individual prescription.

Do not purchase a brace online without clinical advice when there is a history of diabetic foot ulceration or significant neuropathy.

Does Swelling Affect Stock AFO Fit?

Yes.

Swelling can change:

• Calf circumference
• Ankle width
• Foot volume
• Strap tension
• Shoe fit
• Heel position

A stock brace may become too tight or move as swelling changes.

A custom device may sometimes accommodate a more difficult shape, but fluctuating swelling can challenge any close-fitting orthosis.

Repeated swelling should be medically assessed rather than managed solely by:

• Loosening straps
• Buying a larger brace
• Adding padding
• Changing socks

Seek prompt medical advice if swelling is sudden, painful, substantial or accompanied by colour or temperature changes.

Does Body Size Affect the Choice?

Yes.

Prefabricated products are limited to their available size range and design specification.

The AFO Extra is currently available in:

• Small
• Medium
• Large
• X Large
• Left
• Right

Someone may fall outside a stock range because of:

• Foot length
• Calf circumference
• Ankle width
• Overall height
• Body weight
• Limb proportions

Do not select the nearest available size when the measurements fall outside the product guide.

A custom AFO may be required where a standard brace cannot safely accommodate the dimensions or expected load.

What if the Foot Is Small but the Calf Is Large?

Stock AFOs use a fixed relationship between the:

• Footplate
• Ankle section
• Upright height
• Calf section

A person may require:

• A small footplate
• A larger calf cuff
• A different upright height

This mismatch can lead to:

• Poor strap closure
• Incorrect cuff position
• Heel movement
• Pressure
• An AFO that feels too tall or short

Professional adjustment may solve a small mismatch.

A custom device may be needed when the proportions cannot be accommodated safely within one stock size.

What if Both Legs Are Different?

It is normal for the affected and unaffected legs to differ, but some people have major asymmetry between both affected legs.

This can involve:

• Different foot sizes
• Different weakness
• Different ankle ranges
• Different tone
• Different calf shapes
• Different knee control

Do not assume that the same AFO model and size should be used on both sides.

One person may require:

• A prefabricated brace on one side
• A custom AFO on the other
• Different custom prescriptions on each side

Each leg should be assessed according to its own function.

Can a Prefabricated AFO Be Professionally Modified?

Yes, where the design allows it.

Possible adjustments may include:

• Trimming an intended footplate area
• Adjusting strap length
• Replacing padding
• Adding an approved heel strap
• Professional heat modification of suitable thermoplastic
• Fitting the AFO within footwear

The AFO Extra includes a trimmable footplate, detachable padded calf band and optional heel-retaining strap.

After professional adjustment, a prefabricated device may fit the individual sufficiently well.

It remains a stock design, however, because its main shell, stiffness and geometry were not manufactured from the individual’s cast or scan.

When Does an Adjusted Stock Brace Become Custom-Made?

A standard brace that has been:

• Trimmed
• Padded
• Restrapped
• Heat adjusted

is more accurately described as an adapted prefabricated AFO.

It does not become fully custom-made simply because an individual adjustment has been completed.

A custom-made AFO is designed and manufactured around:

• Individual shape
• Individual measurements
• Individual prescription
• Individual mechanical requirements

This distinction helps set realistic expectations about what can and cannot be changed.

Can You Heat a Prefabricated Plastic AFO at Home?

No.

Some thermoplastic AFOs can be professionally heat-modified, but uncontrolled heating may:

• Distort the shell
• Change ankle angle
• Weaken the plastic
• Create a pressure point
• Alter knee control
• Damage the footplate
• Make the device unsafe

NHS guidance advises cleaning an AFO without heat and states that the brace is custom-made or adjusted for the individual and should not be altered by the wearer.

Do not use:

• A hairdryer
• Boiling water
• An oven
• A heat gun
• A radiator

to reshape an AFO.

Can You Cut the Footplate Yourself?

No.

Although some products have trimmable footplates, incorrect trimming may:

• Remove required support
• Create sharp edges
• Change foot pressure
• Make the footplate too short
• Affect toe clearance
• Change how the AFO sits inside the shoe

Trimming should be completed by someone who understands the intended structural boundaries and footwear fit.

Can a Custom AFO Include a Hinge?

Yes.

A custom design may include a mechanical or flexible joint to:

• Allow controlled dorsiflexion
• Limit plantarflexion
• Restrict selected movement
• Permit movement within a defined range
• Influence knee function

A hinged AFO is not automatically better or more natural.

It requires:

• Adequate joint range
• Suitable alignment
• Sufficient muscle control
• Appropriate footwear
• Correct placement of the orthotic joint

Where the anatomical ankle and orthotic joint do not align, pressure and poor function may result.

Can a Custom AFO Be Made Completely Rigid?

Yes.

A solid AFO may be selected to restrict movement more strongly.

It may be considered where the goal includes:

• Greater ankle control
• Management of instability
• Prevention of unwanted movement
• Accommodation of a fixed position
• Influence on the knee
• Protection following injury or surgery

Greater restriction is not always beneficial.

A solid AFO may also affect:

• Stairs
• Slopes
• Sitting
• Knee movement
• Forward progression

The design should follow a clear clinical objective.

Can a Custom AFO Be Made From Carbon Fibre?

Yes.

Custom AFOs may be manufactured from:

• Thermoplastics
• Carbon composite
• Fabric
• Metal components
• Combinations of materials

Daceys manufactures custom AFOs and KAFOs and uses both traditional manufacturing and CAD/CAM-supported digital workflows for bespoke clinical solutions.

Carbon material alone does not define whether a device is custom-made.

The Orthotix Carbon Ankle Foot Orthosis is still prefabricated because it is supplied in standard sizes and shapes.

Can a Plastic AFO Be Custom-Made?

Yes.

Many custom AFOs are made from thermoplastic formed over an individually modified cast or digital model.

The material may appear similar to a prefabricated polypropylene brace, but the:

• Shape
• Angle
• Trim lines
• Footplate
• Calf section
• Straps
• Reinforcement

are selected for the individual.

“Plastic” and “custom-made” are not opposites.

The relevant comparison is:

• Standard-size design
• Individually designed and manufactured device

What Happens During a Custom-AFO Assessment?

The orthotist may ask about:

• The cause of foot drop
• When symptoms began
• Whether they are changing
• Falls
• Pain
• Numbness
• Spasticity
• Fatigue
• Current braces
• Footwear
• Work
• Walking distance
• Stairs
• Driving
• Personal goals

The physical assessment may include:

• Foot and lower-leg shape
• Skin
• Sensation
• Joint range
• Muscle strength
• Muscle tone
• Foot alignment
• Knee control
• Standing
• Walking
• Use of a walking aid

Dorset County Hospital advises patients to bring previous orthoses and typical footwear because these form part of the orthotic assessment.

What Should You Take to an Orthotics Appointment?

Take:

• Your current AFO
• Previous braces
• Usual socks
• Everyday trainers
• Work footwear
• Walking boots where relevant
• Your walking aid
• A list of fitting problems
• Photographs of skin marks
• Details of falls or near misses
• Relevant clinical letters
• Information about daily activities

Wear clothing that allows the lower leg and knee to be examined.

NHS orthotics services recommend bringing sensible adjustable footwear and wearing trousers that can be rolled up or other clothing that allows access to the limb.

How Is the Shape Captured?

The orthotist may use:

• Tape measurements
• Plaster casting
• Foam impression
• 3D scanning
• Photographs
• Video
• Digital gait data

The method depends on:

• Device type
• Service
• Clinical need
• Available technology
• Anatomy
• Manufacturing process

NHS orthotics services confirm that bespoke manufacture may use measurements, casts, photographs, video or 3D scanning.

Does Casting Hurt?

Casting is generally intended to capture the shape and position of the limb rather than apply painful treatment.

The orthotist may:

• Position the foot
• Apply a protective layer
• Wrap casting material
• Mark anatomical points
• Hold the limb while the cast sets
• Remove the cast safely

Tell the orthotist immediately if you experience:

• Pain
• Numbness
• Excessive pressure
• Anxiety
• Skin sensitivity

The foot should not be forced into a position it cannot reach safely.

What Is 3D Scanning?

A 3D scanner captures the surface shape of the foot and lower leg digitally.

The scan can be used to:

• Create a digital model
• Record anatomy
• Support CAD design
• Plan shell shape
• Manufacture a custom device
• Preserve data for repeat production where appropriate

A scan does not replace clinical assessment.

It records shape, but the orthotist must still decide:

• The desired alignment
• Ankle angle
• Stiffness
• Trim lines
• Straps
• Mechanical function

Will You Receive the Custom AFO at the First Appointment?

Usually not.

A stock brace may sometimes be supplied or trialled during the first appointment when the correct design and size are available.

A custom device normally requires:

1. Assessment
2. Measurements, cast or scan
3. Clinical prescription
4. Design and manufacture
5. Fitting
6. Adjustment
7. Follow-up where required

NHS services explain that bespoke devices are normally fitted at a later appointment and may occasionally require more than one fitting before they are ready for use.

Can You Trial a Prefabricated AFO First?

Sometimes.

A trial may help determine whether a particular:

• Stiffness
• Footplate
• Strut
• Strap arrangement
• Level of dorsiflexion assistance

improves walking.

Dorset County Hospital notes that a stock device may sometimes be provided during the initial appointment and that short trials may be used where the nature of the problem is not immediately clear.

A failed stock trial does not always mean that every prefabricated AFO will fail.

The clinician should identify why it was unsuccessful.

Why Might a Prefabricated Trial Fail?

Possible reasons include:

• Wrong size
• Wrong side
• Insufficient stiffness
• Excessive stiffness
• Poor heel position
• Incompatible footwear
• Ankle restriction
• Side-to-side instability
• Spasticity
• Knee effects
• Pressure
• Difficulty putting it on
• The wrong brace category

Some issues can be solved through:

• A different size
• A reinforced model
• Another design
• Better footwear
• Professional adjustment

Others indicate that custom manufacture may be more appropriate.

Does Previous Failure Mean You Need Custom-Made?

Not automatically.

A stock brace may fail because it was:

• Incorrectly fitted
• Paired with unsuitable footwear
• Too large
• Too small
• Too flexible
• Too rigid
• Worn out
• The wrong style

A custom device becomes more likely when several appropriately selected and fitted prefabricated options cannot provide the required:

• Fit
• Control
• Comfort
• Pressure management
• Durability

Take previous braces to the assessment so the orthotist can identify the problem rather than starting without that information.

Does a Custom AFO Guarantee No Rubbing?

No.

A custom AFO is designed around the wearer, but pressure can still develop because of:

• Movement
• Swelling
• Changes in body weight
• Muscle loss
• Growth
• Incorrect fitting
• Sock wrinkles
• Footwear
• Wear and tear
• Changes in muscle tone
• Progression of the condition

Custom devices frequently require:

• A gradual wearing-in period
• Skin checks
• Follow-up
• Minor adjustments
• Replacement straps or padding

A custom fit reduces some mismatches but does not remove the need for monitoring.

Does a Custom AFO Guarantee Better Walking?

No.

The result depends on:

• Diagnosis
• Strength
• Tone
• Ankle range
• Knee and hip control
• Balance
• Sensation
• Brace design
• Footwear
• Walking aid
• Rehabilitation
• Whether the device is worn consistently

A custom AFO can provide a more individual mechanical prescription, but it cannot restore nerve or muscle function by itself.

Is a Custom AFO More Comfortable?

It may be more comfortable when the person cannot be accommodated by a stock shell.

Custom manufacture may improve:

• Contact
• Heel position
• Calf fit
• Pressure distribution
• Alignment
• Strap placement

It can still feel firm or restrictive because it may need to apply meaningful control.

Comfort does not always mean softness or looseness.

An AFO needs to remain secure enough to influence movement without causing harmful pressure.

Is a Custom AFO More Discreet?

Not necessarily.

A custom AFO may be:

• Slim
• Low profile
• Precisely shaped

or it may require:

• A larger shell
• An anterior section
• Additional straps
• A hinge
• Reinforcement
• More substantial footwear

Its appearance follows the required function.

A prefabricated textile brace may remain less visible than a highly controlling custom AFO, but appearance should not take priority over safe control.

Is a Custom AFO Heavier?

Not always.

Weight depends on:

• Material
• Thickness
• Reinforcement
• Joints
• Straps
• Size
• Function

A custom carbon-composite AFO may provide high strength at relatively low weight.

A complex hinged or metal-reinforced device may weigh more than a simple plastic leaf-spring brace.

The objective is to provide the necessary mechanical function with a design the wearer can use safely.

Does a Custom AFO Need Special Footwear?

Often, yes.

A custom AFO still needs footwear that can accommodate:

• Footplate width
• Footplate thickness
• Ankle section
• Straps
• Heel position
• Any hinge or joint

Some people can use ordinary wide, deep trainers.

Others may require:

• Extra-depth footwear
• Specialist footwear
• Adapted footwear
• Made-to-measure footwear

NHS AFO guidance recommends wide, deep footwear with adjustable fastening and a removable insole where possible.

Bring intended footwear to the fitting appointment.

Can a Custom AFO Work With Work Boots?

Possibly.

The orthotist needs to consider:

• Boot depth
• Toe protection
• Heel shape
• Ankle height
• Safety standards
• Fastening
• Footplate space
• Workplace hazards

Do not design the AFO and choose the work boot separately without checking compatibility.

The device and footwear must function as one system.

What About Safety Footwear?

Safety footwear may have:

• A rigid toe cap
• Limited internal depth
• A narrow opening
• A stiff sole
• A high ankle
• Restricted fastening adjustment

These features can make AFO fitting difficult.

Take the exact required safety boot or workplace specification to the orthotic assessment.

A custom AFO cannot compensate for footwear that physically cannot contain it.

Is a Prefabricated AFO Faster to Obtain?

Often, yes.

A stock AFO may be supplied:

• On the day
• After a product order
• After simple fitting or adjustment

when the correct size and design are available.

A custom device requires additional design and manufacturing stages and is normally fitted at a later appointment. NHS orthotics services describe this difference in their stock and bespoke pathways.

The faster option is not the right option if it cannot provide safe support.

Is a Prefabricated AFO Less Expensive?

It is generally less costly to manufacture because the design and tooling are shared across many products.

A custom AFO involves:

• Clinical assessment
• Shape capture
• Individual design
• Individual manufacture
• Fitting
• Adjustment
• Follow-up

Cost should not be the sole deciding factor.

An inexpensive stock brace that cannot be worn is poor value, while a custom device may be unnecessary when a stock AFO performs well.

Can You Buy a Custom-Made AFO Online?

A truly custom-made AFO should not be designed solely from:

• A shoe size
• A photograph
• A written description
• A standard online size chart

A proper prescription generally requires assessment of:

• Joint movement
• Alignment
• Strength
• Tone
• Skin
• Sensation
• Knee behaviour
• Walking
• Footwear
• Goals

Remote information may support parts of a service, but it should not replace the clinical assessment needed for a complex bespoke device.

Can a Prefabricated AFO Be Bought Online?

Yes, some can.

However, online availability does not establish that the device is appropriate.

Self-selection may be more reasonable only where:

• The condition has been medically assessed
• The presentation matches the stated indication
• Measurements fit the size guide
• The ankle remains flexible
• There is no significant spasticity or deformity
• Skin and sensation are not high risk
• The wearer understands fitting
• Suitable footwear is available

Seek professional advice if any of these points are uncertain.

Can an NHS Orthotics Service Provide Either Type?

Yes.

NHS orthotics services use a combination of:

• Stock devices
• Adapted stock devices
• Made-to-measure devices
• Custom-made orthoses

The exact provision depends on:

• Clinical need
• Local pathway
• Available products
• Prescription
• Eligibility
• Service policy

Oxford University Hospitals confirms that orthotics services use a wide range of prefabricated and custom-made orthoses.

A referral may be required for a first assessment.

Can You Obtain a Custom AFO Privately?

Yes.

Private orthotic providers may assess, prescribe and manufacture custom AFOs.

Check that the service provides:

• Assessment by a suitably qualified professional
• Clear clinical goals
• Appropriate measurements or scanning
• A fitting appointment
• Adjustment
• Follow-up
• Repair and replacement advice

Daceys provides bespoke lower-limb orthoses, including custom AFOs and KAFOs, through its in-house manufacturing capability.

How Long Does a Custom AFO Last?

There is no universal lifespan.

Durability depends on:

• Material
• Body weight
• Activity
• Walking pattern
• Growth
• Swelling
• Care
• Footwear
• Changes in the condition
• Wear to straps and padding

A custom AFO may need review when:

• It cracks
• Padding compresses
• Straps wear
• The fit changes
• The leg changes shape
• The ankle becomes stiffer
• Walking changes
• It becomes less effective

Do not wait for complete structural failure.

Can a Prefabricated AFO Last as Long as a Custom AFO?

Possibly.

A well-selected stock AFO may provide long and reliable use.

A custom device may also wear quickly if:

• Used outside its intended activity
• The wearer’s body changes
• It is not maintained
• It is subjected to heavy loading
• Straps are not replaced

Longevity depends on design and use rather than custom status alone.

Can Someone Else Use Your AFO?

No.

A custom AFO is designed for one individual.

A prefabricated brace that has been selected, trimmed or adjusted for one person should also not be passed to someone else.

NHS guidance states that an AFO is custom-made or adjusted for the wearer and should not be fitted to another person.

A similar shoe size does not mean the:

• Ankle angle
• Leg shape
• Weakness
• Knee control
• Skin risk

are the same.

What if You Lose Weight?

Weight loss or muscle loss may make either brace loose.

Signs include:

• Cuff movement
• Heel lift
• Rotation
• Needing excessive strap tightening
• Reduced control
• New rubbing

A custom AFO may be adjusted in some cases, but substantial changes may require replacement.

Do not fill excessive space with:

• Thick socks
• Folded fabric
• Improvised foam

without professional advice.

What if You Gain Weight?

Weight gain or increased leg volume may prevent the brace from reaching its correct position.

You may notice:

• Straps barely fastening
• Pressure around the calf
• The heel remaining lifted
• Tight footwear
• Toe pressure
• Skin marks

A larger stock size is not always the solution because the footplate and ankle shape may then become too large.

Arrange a review of the full fit.

What if Your Condition Changes?

AFO requirements can change with:

• Nerve recovery
• Stroke rehabilitation
• Progression of multiple sclerosis
• Increasing spasticity
• Surgery
• Changes in sensation
• New knee weakness
• Contracture
• Reduced swelling
• Growth
• Changes in activity

A custom AFO prescribed several years ago may no longer be the best design.

A stock AFO that previously worked may also become insufficient.

Review the support when function changes rather than assuming that the original prescription remains permanent.

Could You Move From Custom-Made to Prefabricated?

Yes.

A person may need less control after:

• Recovery
• Improved strength
• Reduced swelling
• Successful surgery
• Rehabilitation
• Changes in muscle tone

A suitable prefabricated AFO may then provide enough assistance.

Do not make this change without assessment where the custom device was controlling:

• Ankle alignment
• Knee position
• Spasticity
• A fixed deformity
• Significant instability

Could You Move From Prefabricated to Custom-Made?

Yes.

This may be considered when:

• Weakness progresses
• The ankle becomes stiffer
• Side-to-side movement increases
• Knee control worsens
• Stock sizes no longer fit
• Repeated pressure develops
• Several stock products fail
• Daily activities become more demanding
• A more precise mechanical effect is required

The decision should be based on why the current brace is failing.

Can You Use Both?

Some people use different AFOs for different circumstances.

For example:

• A custom AFO for longer outdoor walking
• A lighter prefabricated brace for short indoor activity
• A textile support for selected footwear
• A resting splint at night

This can be appropriate where each device has a clear purpose.

Do not switch unpredictably between braces that create different:

• Ankle angles
• Knee effects
• Foot positions
• Footwear requirements

Signs a Prefabricated AFO May Be Working Well

A stock AFO may be suitable when:

• The heel remains seated
• The calf section stays in position
• Toe clearance improves
• The foot does not turn excessively
• The knee remains controlled
• The brace fits suitable footwear
• Skin marks fade promptly
• The wearer can put it on consistently
• It remains effective as fatigue develops
• Walking feels safer or easier

There is no need to move to custom manufacture simply because it is available.

Signs You May Need a Custom Assessment

Arrange an orthotic assessment when:

• No stock size fits
• The calf and foot require different sizes
• The heel repeatedly lifts
• The ankle is fixed
• The foot turns strongly
• Significant spasticity is present
• The knee gives way or hyperextends
• The brace produces repeated pressure
• Sensation is significantly reduced
• An ulcer or skin breakdown is present
• The brace cannot fit required footwear
• Several appropriate stock braces have failed
• The device needs constant adjustment
• Weakness is worsening
• Both legs have different complex needs

Ankle Foot Orthosis Extra as a Prefabricated Option

The Ankle Foot Orthosis Extra, SKU AFX, is a stock AFO intended to provide reinforced dorsiflexion assistance without requiring full bespoke manufacture.

Its current features include:

• Low-profile prefabricated leaf-spring design
• Injection-moulded polypropylene
• Carbon-fibre composite reinforcement
• Dorsiflexion assistance
• Trimmable footplate
• Open heel
• Detachable washable padded calf band
• Optional heel-retaining strap
• Small, Medium, Large and X Large sizing
• Separate left- and right-foot versions

It contains latex.

It may suit someone who:

• Has flaccid foot drop
• Fits its standard sizing
• Requires more reinforcement than a basic lightweight leaf spring
• Has an ankle that can be positioned appropriately
• Does not require extensive custom containment
• Can use suitable footwear

It may be unsuitable where:

• The ankle is significantly fixed
• Spasticity is substantial
• The foot turns strongly
• Complex knee control is required
• Standard calf and foot proportions do not fit
• Skin requires individual pressure relief
• The brace cannot provide the required alignment

Custom AFOs Through Specialist Orthotics

A custom-made AFO may allow individual selection of:

• Ankle angle
• Footplate length and shape
• Shell height
• Trim lines
• Stiffness
• Hinge or joint
• Straps
• Padding
• Pressure relief
• Material
• Knee influence
• Footwear relationship

Within the PTH Group, Daceys manufactures custom lower-limb orthoses including AFOs and KAFOs through its specialist in-house manufacturing service, supported by CAD/CAM and digital workflows.

A custom product must still be prescribed, fitted and reviewed.

Simple Prefabricated-or-Custom Decision Guide

A prefabricated AFO may be worth considering when:

• Foot drop is relatively straightforward
• Weakness is principally flaccid
• The ankle remains flexible
• The foot can be positioned appropriately
• Side-to-side instability is limited
• The knee remains reasonably stable
• The heel can remain seated
• Standard measurements fit
• Skin and sensation are not high risk
• Suitable footwear is available
• The required support matches an existing design

A custom-made AFO may be worth considering when:

• Stock sizing does not fit
• Foot and calf proportions differ substantially
• The ankle is stiff or fixed
• The foot has structural deformity
• The foot turns strongly
• Spasticity is significant
• The knee requires specific control
• A hinge or specific ankle angle is needed
• Pressure relief must be individualised
• Sensation or skin risk is complex
• The person has failed several appropriate stock braces
• The device must meet highly specific work or mobility requirements

Questions To Ask Before Choosing

Has the cause of the foot drop been assessed?

New or worsening weakness should be medically investigated.

Is the ankle flexible?

A standard brace may not fit safely over a fixed ankle.

Does the foot turn?

Substantial inward or outward movement may require greater containment.

Is the knee affected?

An AFO may need to influence more than toe clearance.

Does a standard size genuinely fit?

Do not select the nearest size when measurements are outside the guide.

Is there reduced sensation?

Pressure may not be felt and requires careful management.

Has a stock AFO already been tried?

Identify why it did or did not work.

Can the wearer put it on?

A technically suitable brace is not useful if it cannot be fitted consistently.

What footwear must be worn?

The AFO and footwear must work together.

What activities must the device support?

Consider:

• Home mobility
• Work
• Long walks
• Stairs
• Travel
• Uneven ground
• Exercise
• Driving

Will follow-up be available?

Both stock and custom devices may need adjustment, strap replacement or review.

Do Not Choose Only by Appearance

A custom AFO may look more substantial because it provides greater control.

A prefabricated brace may look lighter and more discreet.

Appearance does not establish:

• Suitability
• Safety
• Comfort
• Effectiveness
• Required stiffness

The least visible brace is not the best choice when it allows continued toe catching, foot rotation or knee instability.

Do Not Choose Only by Price

A prefabricated brace may provide excellent value where it meets the need.

A custom AFO may be worth the additional clinical and manufacturing input where no stock device can provide the required fit or function.

The relevant question is:

Does this brace safely achieve the intended clinical goal?

rather than:

Which one costs more?

Do Not Choose Only Because Custom Sounds Better

Custom-made should solve a genuine problem that cannot be managed satisfactorily by a stock design.

Possible benefits include:

• Individual fit
• Individual alignment
• Precise mechanical prescription
• Better accommodation of deformity
• More options for joints and materials

It also involves:

• Assessment
• Manufacture
• Fitting
• Adjustment
• Follow-up

A stock AFO remains the simpler and more proportionate option when it already works well.

Do Not Choose Only Because Stock Is Available Immediately

Immediate availability is useful, but it should not override:

• Unsafe fit
• Incorrect ankle angle
• Insufficient control
• Skin risk
• Significant spasticity
• Complex knee instability

A device that can be taken home today is not helpful when it cannot be worn safely.

Check Either Type Before Every Use

Inspect for:

• Cracks
• Sharp edges
• Loose components
• Worn straps
• Compressed padding
• Foreign objects
• Footplate damage
• Changes in shape

Check the skin before and after wearing.

The brace should not cause:

• Persistent pain
• Blistering
• Broken skin
• Numbness
• Swelling
• Colour changes
• Temperature changes

When Should You Stop Wearing the AFO?

Stop and seek advice if:

• The skin breaks
• Redness does not fade
• Pain increases
• The foot becomes numb
• The foot becomes cold or discoloured
• The heel cannot remain seated
• The foot is pulled strongly sideways
• The brace repeatedly slips
• The knee becomes less stable
• Toe catching worsens
• The structure cracks
• A strap no longer remains closed

Do not permanently modify either a prefabricated or custom-made AFO at home.

Can Either Type Cure Foot Drop?

No.

A prefabricated or custom-made AFO assists or controls the foot while it is worn.

It does not repair the nerve, muscle, brain or spinal condition causing the weakness.

Treatment may also involve:

• Physiotherapy
• Medical investigation
• Functional electrical stimulation
• Treatment of nerve compression
• Management of an underlying neurological condition
• Walking aids
• Falls prevention
• Surgery in selected cases

The NHS advises seeing a GP if you find it difficult to lift the front of your foot or toes. Treatment depends on the cause and may include physiotherapy, an orthosis, electrical stimulation or surgery in selected cases.

When Should Foot Drop Be Medically Reassessed?

Arrange a GP or specialist review if:

• Foot drop is new
• Weakness is worsening
• Both feet are affected
• Numbness is increasing
• Weakness is spreading
• You are falling more frequently
• The ankle is becoming stiffer
• Spasticity is increasing
• A previously effective AFO no longer helps
• Symptoms followed an injury or operation
• New back or leg pain has developed

Call 999 if sudden weakness occurs with:

• Facial drooping
• Arm weakness
• Slurred or confused speech

Seek urgent medical assessment if new foot or leg weakness occurs with:

• Severe or worsening back pain
• Numbness around the genitals or buttocks
• Difficulty starting or controlling urination
• Loss of bladder or bowel control
• Rapidly worsening weakness

Do not rely on changing from a prefabricated to a custom AFO to manage a new neurological change without medical assessment.
