A foot drop brace should remain securely positioned while you stand and walk.
Small changes can occur as clothing settles or straps are adjusted, but the brace should not repeatedly:
- Slide down the leg
- Rotate around the calf or ankle
- Move forwards inside the shoe
- Allow the heel to lift
- Pull strongly to one side
- Lose its connection to the footwear
- Require constant readjustment
- Stop assisting toe clearance
Movement usually has an identifiable cause. Common reasons include incorrect fitting, unsuitable footwear, the wrong size, swelling, worn components or a brace design that does not provide enough control for the wearer’s needs.
Do not respond by tightening every strap as firmly as possible. Excessive tightness may cause pressure, numbness, swelling or skin damage while the brace continues to move for another reason.
Why Does a Foot Drop Brace Need To Stay in Position?
A foot drop brace is positioned to apply support in a particular direction.
Depending on the design, it may help:
- Lift the front of the foot
- Improve toe clearance
- Hold the heel
- Control side-to-side ankle movement
- Influence how the foot contacts the ground
- Affect knee position during walking
If the brace moves, the support may no longer be applied where intended.
This can result in:
- Continued toe dragging
- The foot being pulled unevenly
- Increased rubbing
- Pressure over ankle bones
- Heel movement
- Reduced stability
- Catching straps or clothing
- A greater risk of stumbling
Rigid AFOs should fit closely, with the heel positioned firmly at the back and bottom of the device before the straps are secured.
First, Sit Down Before Adjusting the Brace
Do not try to reposition a brace while balancing on the affected leg.
Sit in a stable chair and:
- Place both feet safely on the floor.
- Raise the trouser leg.
- Remove or loosen the footwear where necessary.
- Inspect the complete brace.
- Check the position of the heel, cuff and straps.
- Look for twists, folds or damaged components.
- Refit the device from the beginning.
- Test it over a short, level distance.
Where a walking aid has been prescribed, keep it within reach before standing again.
Is the Heel Fully Seated?
An incompletely seated heel is one of the most common reasons a rigid AFO appears to move or fit incorrectly.
The heel should sit:
- Fully down
- Firmly towards the rear
- Centred
- Without a large gap underneath
- Without a large gap behind it
If the heel remains lifted, the foot can slide forwards and the brace may:
- Press against the ankle bones
- Feel too tall
- Pull away from the calf
- Allow the heel to rub
- Push the toes into the shoe
- Move during walking
- Make the straps appear too loose
Before fastening the straps, bend the knee and guide the heel firmly back and down.
Where an ankle-retaining strap is present, secure it while maintaining this heel position. NHS fitting guidance specifically advises holding the heel down and back before fastening the ankle and calf straps.
Why Does the Heel Lift Inside the AFO?
Heel lift may occur because:
- The heel was not seated correctly at the start
- The shoe is too loose
- The shoe is too long
- The footwear fastening is not secure
- The ankle-retaining strap is loose
- The footplate does not lie flat
- The sock has gathered beneath the heel
- The AFO is too large
- The foot is sliding forwards
- Swelling or body shape has changed
- The brace needs a heel-retaining component
Do not compensate by pulling the calf strap excessively tight. A calf strap cannot reliably correct a heel that is moving lower down.
Check the complete combination of:
- Foot
- Sock
- AFO
- Straps
- Footwear
The heel, brace and shoe should move together as a stable unit.
Is the Calf Strap Too Loose?
The calf strap helps keep the upper section of a rigid AFO close to the leg.
If it is too loose, the brace may:
- Pull away from the calf
- Rotate
- Move inside the trouser leg
- Feel unstable
- Produce a clicking or shifting sensation
- Apply inconsistent control
The strap should:
- Lie flat
- Sit at its intended height
- Have any padding centred
- Prevent excessive movement
- Feel secure without causing pain
- Avoid twisting
A secure strap does not need to be painfully tight.
If tightening the calf strap causes numbness, tingling, swelling or a deep pressure line, stop and reassess the full fit.
Can a Calf Strap Be Too Tight and Still Allow Movement?
Yes.
An overtight strap may hold one section of the brace while the heel or foot continues to move below it.
This can create:
- Increased rubbing
- A pivot point around the calf
- Swelling below the strap
- Skin pressure
- Discomfort while sitting
- Movement of the foot inside the shoe
- Rotation around the ankle
Do not assume that tighter always means more stable.
The brace should be positioned correctly throughout its complete length.
Check for Twisted Straps
A twisted strap has less contact with the body and creates concentrated pressure.
It can also pull the brace unevenly.
Before standing, check that:
- Every strap shows its full width
- Padding remains centred
- No strap is doubled over
- The fastening lies completely flat
- Clothing is not trapped beneath it
- No loose end is catching on the trouser leg
Run your fingers along the complete length of each strap rather than checking only the fastening point.
Could the Brace Be the Wrong Size?
A brace that is too large may:
- Rotate
- Slide down
- Allow heel movement
- Move inside the shoe
- Leave large gaps
- Require excessive strap tightening
- Provide inconsistent control
A brace that is too small may also move because:
- It cannot sit in its intended position
- The heel cannot reach the back
- Straps are overstretched
- The footplate is too narrow
- The calf section is forced forwards
- Pressure causes the wearer to alter their gait
Do not choose a smaller size simply to make the support feel firmer.
Use the measurement method and size guide for the exact product. Small, Medium or Large labels are not interchangeable between different AFO designs.
Make Sure You Are Using the Correct Side
Many rigid AFOs are supplied as separate left- and right-foot versions.
Using the wrong side may cause:
- Poor footplate alignment
- Rotation
- Uneven ankle pressure
- The heel to sit incorrectly
- The foot to be pushed sideways
- Poor shoe fit
- Reduced walking stability
Check:
- The product label
- The shape of the footplate
- Manufacturer markings
- Your order confirmation
Do not turn an AFO around or attempt to adapt one side for the other foot.
Is Your Sock Causing the Brace To Move?
A rigid AFO is normally worn over a smooth, suitable sock or other interface recommended by the orthotics service.
The sock should:
- Extend above all brace edges
- Fit smoothly
- Avoid wrinkles
- Avoid bulky seams
- Remain dry
- Fit securely without being excessively tight
A loose or gathered sock may allow the foot to slide or create folds beneath the brace.
A very thick sock can also reduce the available space and prevent the heel from reaching the correct position.
Use the sock thickness recommended for your device and footwear.
Can Clothing Make an AFO Slip?
Yes.
A narrow trouser leg can catch the upper part of the brace and pull it down as you:
- Sit
- Stand
- Bend the knee
- Climb stairs
- Enter a vehicle
- Use the toilet
Clothing may also:
- Open a touch-close fastening
- Twist a strap
- Press the cuff against the calf
- Pull a textile support sideways
- Catch a hinge
- Cover the brace so tightly that movement cannot be seen
Fit the brace completely before lowering the trouser leg.
Straight-leg, relaxed or stretch trousers usually provide more room than tightly tapered styles.
Do not fasten the brace over thick, loose or wrinkled clothing. Fabric folds can affect stability and create skin pressure.
Is the Footwear Secure Enough?
Footwear is an important part of the AFO system.
A shoe that is too loose may allow:
- Heel lift
- The foot to slide forwards
- The brace to move independently
- The footplate to shift
- Increased rubbing
- Poor toe clearance
A suitable shoe normally needs:
- An enclosed heel
- An enclosed toe
- Adjustable laces or touch-close fastening
- Sufficient width
- Sufficient depth
- A stable sole
- A secure fit around the heel
Slip-on, shallow and high-heeled footwear is generally unsuitable for many rigid AFOs because it cannot securely contain the brace and foot.
Can a Shoe Be Too Large?
Yes.
Buying a much longer shoe may create space for the brace, but it can also allow the foot to slide.
This may cause:
- Heel movement
- Toe gripping
- The foot moving forwards
- The brace shifting
- Instability
- A longer shoe becoming a trip hazard
Look for the correct combination of:
- Length
- Width
- Depth
- Fastening adjustment
- Heel security
- Internal space
A wider or deeper version of the correct length may be more suitable than a substantially longer shoe.
Take the AFO with you when trying new footwear. NHS orthotics guidance recommends assessing footwear with the brace present so the complete combination can be checked.
Can a Shoe Be Too Tight?
Yes.
A shoe that squeezes the AFO may:
- Distort the plastic
- Push the brace sideways
- Prevent the heel sitting down
- Increase ankle pressure
- Crowd the toes
- Alter the position of the footplate
- Make the brace appear to rotate
The shoe should fasten securely without crushing either the foot or the brace.
Removing a removable insole can sometimes create additional depth, but only do this when it remains suitable for the intended shoe and foot.
Why Does a Textile Foot Drop Brace Slip Down?
Textile supports such as Boxia® and StepUp® depend on their cuffs, straps and attachments remaining correctly positioned.
A textile cuff may slip when:
- It is too large
- It is not fastened securely
- It is fitted at the wrong height
- The skin or underlying layer is very slippery
- The fabric has become damp
- The calf shape causes downward movement
- Elastic components have stretched
- Clothing pulls against it
- The lifting strap applies uneven tension
- The support is no longer suitable for the required level of control
The support should remain level around the ankle or calf rather than gradually travelling downwards.
Why Does My Boxia® Ankle Cuff Rotate?
The Boxia® Drop Foot AFO uses a cuff above the ankle and an adjustable elastic tension strap connected to compatible footwear. It is designed to sit externally to the shoe rather than using a full rigid footplate.
The cuff may rotate when:
- It is the wrong size
- The fastening is too loose
- The tension strap pulls to one side
- The footwear attachment is off-centre
- The strap is twisted
- A trouser leg catches the cuff
- The elastic is worn
- Excessive tension is being used
- The wearer requires a different distribution of force
Check that the footwear attachment and tension strap are centred at the front of the shoe.
The lifting force should travel in a controlled direction rather than pulling diagonally around the ankle.
Check the Boxia® Footwear Attachment
A Boxia® system may use a compatible hook or attachment secured to the front of the footwear.
Check that it is:
- Securely fitted
- Centred
- Not bent
- Not cracked
- Not attached to a loose lace
- Clear of the trouser hem
- Correctly connected to the tension strap
A loose or off-centre attachment can pull the cuff sideways and produce inconsistent foot lift.
Replacement Boxia® S-shaped hooks are available where an original compatible hook has become worn or damaged. They are accessories rather than complete braces.
Could the Boxia® Tension Strap Be Worn?
Elastic tension components can deteriorate through repeated use.
A worn tension strap may:
- Feel less responsive
- Require repeated tightening
- Provide inconsistent lift
- Stretch during walking
- Allow continued toe dragging
- Pull unevenly if damaged
Inspect it for:
- Fraying
- Loss of elasticity
- Damaged stitching
- Cracks around attachments
- Uneven stretching
- A fastening that no longer remains secure
Orthotix supplies replacement Boxia® tension straps in compatible sizes and colours. The replacement component contains latex.
Do not replace a medical traction strap with ordinary household elastic.

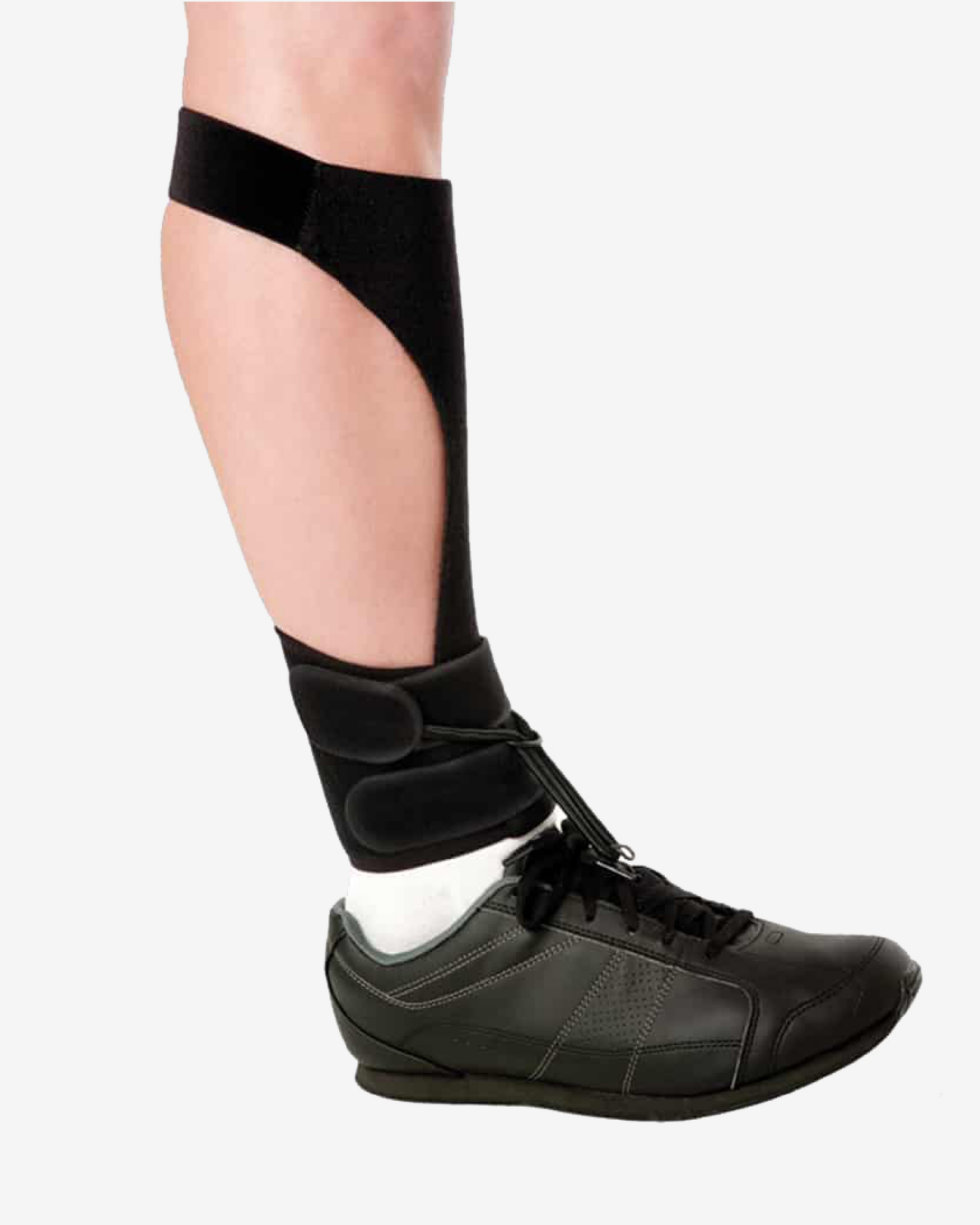

Would the Boxia® Calf Support Attachment Help?
The Boxia® Calf Support Attachment may be useful for compatible Boxia users who experience excessive force around the ankle or difficulty maintaining comfort and stability with the ankle cuff alone.
It adds a higher calf component and redistributes some of the loading away from the ankle.
This may provide:
- A broader support area
- Improved stability
- Reduced concentration of force around the ankle
- Better tolerance during everyday wear
- A more secure feeling beneath clothing
The accessory is available in X Small, Small/Medium and Large and in black or beige. It is specifically designed to integrate with the Boxia® Drop Foot AFO.
It is not suitable as:
- A standalone brace
- An accessory for unrelated AFOs
- A replacement for the Boxia tension strap
- A solution for every slipping problem
- A substitute for professional assessment where control remains inadequate
Check that the existing Boxia is the correct size and fitted properly before adding accessories.
Why Does StepUp® Move?
StepUp® uses a soft calf band, foot component and adjustable tension straps. It is designed as a low-profile textile support for flaccid foot drop.
It may move when:
- The calf band is incorrectly sized
- The touch-close fastening is not fully secured
- The foot component is off-centre
- A strap is twisted
- Tension is uneven
- Clothing catches the upper section
- Anti-slip surfaces are not contacting the intended area
- The material is damp
- The universal components have not been fitted appropriately
- The foot is being pulled strongly to one side
Check the complete strap pathway rather than tightening only the side that feels loose.
Unequal tension may be intentional in some fitting situations, but this should produce controlled alignment rather than rotation or discomfort.
Can Too Much Lifting Tension Cause Movement?
Yes.
Increasing tension beyond what is needed can:
- Pull the cuff down
- Rotate the ankle section
- Lift the heel
- Pull the foot inwards or outwards
- Increase pressure
- Distort the shoe
- Make standing less stable
- Cause the strap to stretch more quickly
Use the minimum tension that provides useful toe clearance and controlled walking.
If substantial tension is needed merely to prevent the toes dragging, a soft textile support may not provide enough control for the presentation.
An orthotist or physiotherapist may need to assess whether a rigid, carbon, dynamic or custom-made AFO is more appropriate.
Can Too Little Tension Cause the Brace To Feel Loose?
Yes.
A lifting strap that is too loose may:
- Hang away from the leg
- Catch clothing
- Provide little toe clearance
- Move around the ankle
- Feel delayed during walking
- Allow the footwear connection to shift
Tension should be adjusted gradually while seated.
Walk several steps on a familiar surface after each change.
Do not adjust the brace while standing unsupported.
Does Calf Shape Affect Slipping?
Yes.
The lower leg may be:
- Narrower near the ankle
- Fuller through the calf
- Relatively straight
- Affected by muscle loss
- Affected by swelling
- Different in shape between sides
Some cuffs naturally tend to move towards the narrowest point of the leg.
A correctly selected cuff and fastening system should account for the wearer’s shape, but substantial muscle loss, swelling or asymmetry may make a standard product less secure.
Do not try to change the leg shape with folded fabric or improvised padding.
A professional assessment may identify a more suitable design.
Can Swelling Make the Brace Move?
Yes.
Swelling can make a brace feel tighter initially and then alter its position as the leg changes during the day.
Possible signs include:
- Increasing strap marks
- The shoe becoming difficult to fasten
- A throbbing sensation
- Numbness
- Indentations
- The brace sitting at a different height
- The cuff becoming difficult to remove
Repeated swelling should be discussed with a healthcare professional.
Seek prompt medical assessment if swelling is sudden, substantial, painful or accompanied by a marked change in skin colour or temperature.
Can Weight Loss or Muscle Loss Make an AFO Loose?
Yes.
A previously suitable brace may begin moving after:
- Weight loss
- Reduced calf muscle bulk
- Changes following illness
- Neurological progression
- Reduced swelling
- Rehabilitation
- Surgery
- Growth in younger users
Do not permanently shorten straps or add thick padding without professional advice.
The AFO may need:
- New straps
- New padding
- Modification
- Recasting
- Replacement
- A different brace design
Can Weight Gain Make the Brace Slip?
Weight gain or increased leg size may prevent the brace from reaching its intended position.
This can cause:
- Straps to sit at the wrong height
- The heel to remain lifted
- Fastenings to be overstretched
- The brace to rotate
- Footwear to become too tight
- Pressure around the calf or ankle
A brace that cannot be fully positioned may move even though it feels extremely tight.
Check for Worn Touch-Close Fastening
Touch-close material can lose grip when it becomes:
- Filled with lint
- Worn smooth
- Stretched
- Damaged
- Wet
- Poorly aligned
Clean loose fluff from the fastening carefully according to the product instructions.
Replace worn straps with compatible parts rather than:
- Pinning them
- Knotting them
- Gluing them
- Adding adhesive tape
- Sewing through structural sections yourself
A fastening that opens during walking can allow the brace to move suddenly.
Inspect a Rigid AFO for Damage
Look for:
- Cracked plastic
- White stress lines
- Loose rivets
- Worn padding
- Sharp edges
- Split straps
- Damaged hinges
- A distorted footplate
- Carbon splintering
- Areas that flex differently from before
A damaged brace may no longer hold its original shape.
NHS orthotics guidance advises checking AFOs for cracked plastic, loose rivets and worn fastenings and contacting the orthotics service for repair rather than attempting structural alterations at home.
Why Does the Brace Move More Later in the Day?
A brace may fit correctly in the morning but move later because of:
- Swelling
- Sweating
- A damp sock
- Muscle fatigue
- Stretching of textile components
- Loosening footwear
- Increased walking
- Prolonged sitting
- Repeated dressing and undressing
- Changes in gait as the wearer tires
Recheck the fit during a safe seated break.
Do not automatically increase every strap tension. First check whether swelling, moisture or footwear is changing the position.
Check the Brace After Sitting
Sitting changes the shape of the calf, ankle and foot.
A trouser leg may also pull upwards and catch the brace.
After a long period of sitting, check:
- Cuff position
- Strap alignment
- Heel position
- Footwear fastening
- Tension-strap connection
- Swelling
- Skin comfort
This is particularly important after:
- Desk work
- Car journeys
- Wheelchair use
- Meals
- Cinema or theatre visits
- Long periods on a sofa
Check the Brace After Using the Toilet
Lowering and replacing trousers can move a textile or rigid support.
Before walking again, check that:
- No fabric is trapped
- The cuff remains level
- Straps remain closed
- The heel remains seated
- The Boxia attachment is connected
- The trouser hem is clear of the foot
- Nothing has twisted
A brace may still feel firm even when it is no longer in the correct position.
Can the Brace Move Because Your Walking Has Changed?
Yes.
Changes in gait may occur because of:
- Increasing weakness
- Spasticity
- Pain
- Knee instability
- Hip weakness
- Fatigue
- Reduced balance
- A new injury
- Progression of a neurological condition
- Recovery after surgery
A brace selected for an earlier presentation may no longer provide sufficient control.
Arrange a review if movement is accompanied by:
- New knee hyperextension
- The knee giving way
- Increasing foot inversion
- Increasing toe dragging
- More falls
- New pain
- Rapidly worsening weakness
What if the Foot Is Still Turning Inwards or Outwards?
A simple dorsiflexion-assistance support principally helps lift the front of the foot.
It may not provide enough control for substantial:
- Inversion
- Eversion
- Ankle instability
- Spasticity
- Fixed deformity
- Knee instability
Do not continue increasing lifting tension to overpower strong side-to-side movement or muscle tone.
A more structured AFO or individually prescribed device may be required.
Is Repeated Readjustment Normal?
A new support may require minor adjustment while you learn the correct fitting method.
It should not normally need to be repositioned every few minutes.
Repeated adjustment suggests checking:
- Product size
- Heel position
- Cuff position
- Strap tension
- Footwear
- Clothing
- Worn parts
- Swelling
- Whether the design provides enough control
A support that cannot remain stable may not provide reliable assistance.
Do Not Use Improvised Methods To Stop Slipping
Avoid:
- Safety pins
- Extra belts
- Household elastic
- Adhesive tape around the leg
- Folded socks
- Foam added without advice
- Tying knots in straps
- Gluing attachments
- Drilling new strap holes
- Heating or bending plastic
- Cutting carbon components
These changes may create skin pressure, damage the brace or alter the direction of support.
When Should the Brace Be Professionally Reviewed?
Arrange a review when:
- It repeatedly slips despite careful fitting
- The heel will not remain seated
- Straps no longer stay closed
- The brace has become too large or small
- The foot is pulled sideways
- Toe clearance remains poor
- Skin marks persist
- The device is damaged
- Swelling has changed the fit
- Your walking pattern has changed
- The knee feels less stable
- You have had more trips or falls
- The support was custom-made
- You are unsure how to adjust it
Take the brace, usual socks and regular footwear to the appointment so the complete system can be assessed.
Simple Slipping-Brace Checklist
Before walking, confirm that:
- You have the correct brace and side
- The heel is fully seated
- The foot is centred
- The sock is smooth
- No strap is twisted
- The calf strap is secure
- The footwear fits properly
- The shoe fastening is secure
- A Boxia attachment is centred
- The lifting strap is not worn
- Textile tension is balanced
- Clothing does not catch the brace
- The device is not cracked or damaged
- There is no excessive swelling
- Toe clearance improves
- The brace remains stable over several steps
- There is no pain, numbness or skin discolouration
Recommended Boxia® Stability Accessory
The Boxia® Calf Support Attachment, SKU AB14 / AB24, is an optional accessory for the Boxia® Drop Foot AFO.
It may help Boxia users who experience excessive pressure around the ankle or want support distributed across a broader area of the lower leg.
Its features include:
- Compatibility with the Boxia® Drop Foot AFO
- A higher calf support area
- Redistribution of force away from the ankle
- Improved comfort for suitable users
- Additional stability
- A lightweight, low-profile design
- Black and beige colour options
- X Small, Small/Medium and Large sizing
It cannot be used independently and does not replace the main Boxia cuff, traction strap or footwear attachment.
A slipping problem caused by the wrong brace size, unsuitable footwear, worn components or a more complex walking impairment will not necessarily be solved by adding the attachment.
Can a Stable Brace Cure Foot Drop?
No.
A correctly fitted brace can assist foot positioning and toe clearance while it is being worn. It does not repair the nerve, muscle, brain or spinal condition causing the weakness.
The NHS identifies braces, splints and shoe inserts as possible ways of helping hold the foot in position. Other treatment may include physiotherapy, electrical stimulation, treatment of the underlying cause or surgery in selected cases.
When Should Foot Drop Be Medically Assessed?
Arrange a GP appointment if you have difficulty lifting the front of your foot or toes, particularly if the weakness is new, worsening or unexplained.
Obtain further assessment when:
- Both feet are affected
- Numbness is increasing
- You are falling more often
- The brace has become less effective
- Weakness is spreading further up the leg
- Symptoms followed surgery or injury
- Your walking has changed substantially
Call 999 if sudden weakness occurs with:
- Facial drooping
- Arm weakness
- Slurred or confused speech
Seek urgent medical assessment if new foot or leg weakness occurs with:
- Severe or worsening back pain
- Numbness around the genitals or buttocks
- Difficulty starting or controlling urination
- Loss of bladder or bowel control
- Rapidly worsening weakness
Do not rely on repeatedly tightening a brace to manage new or progressive neurological symptoms.
