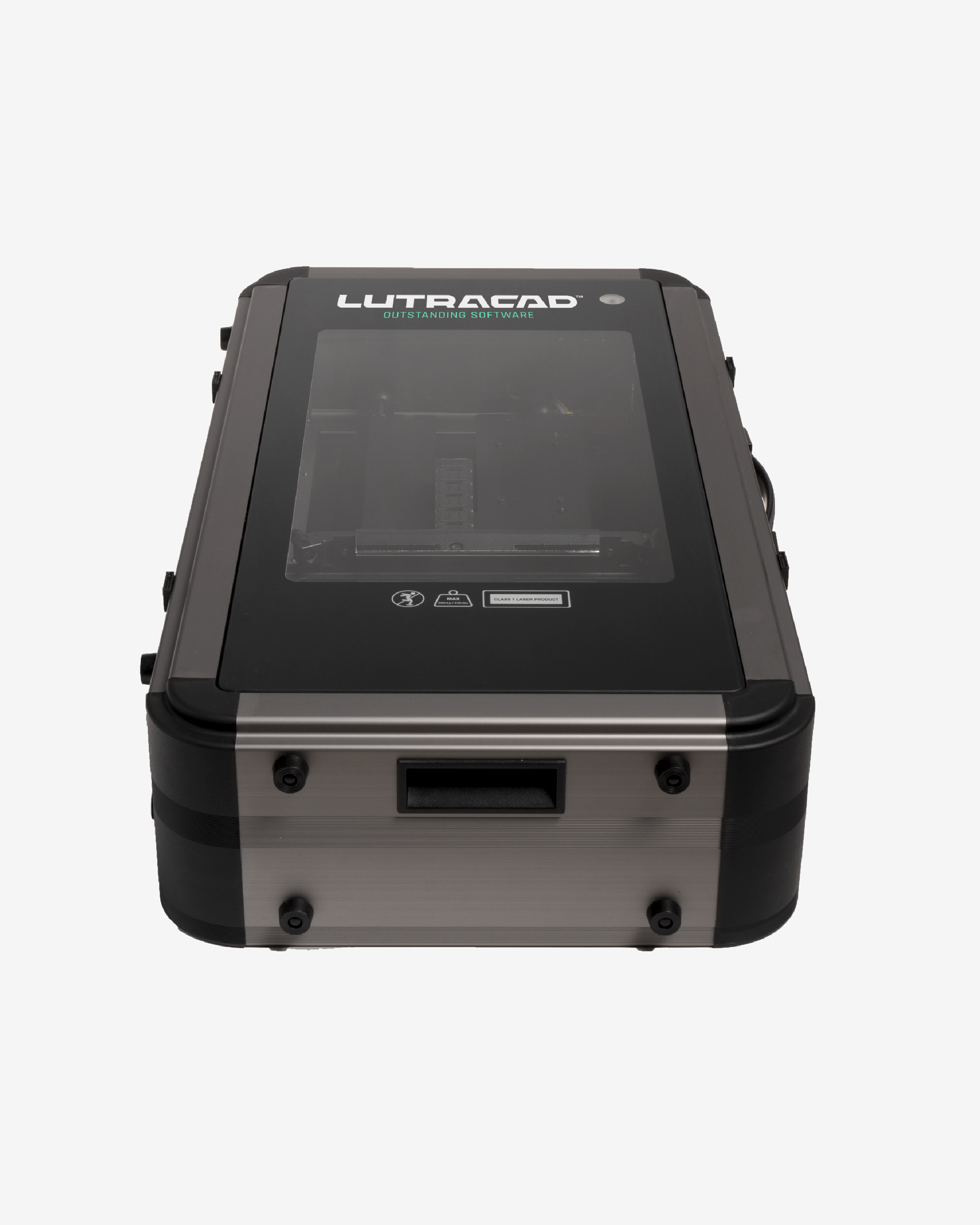

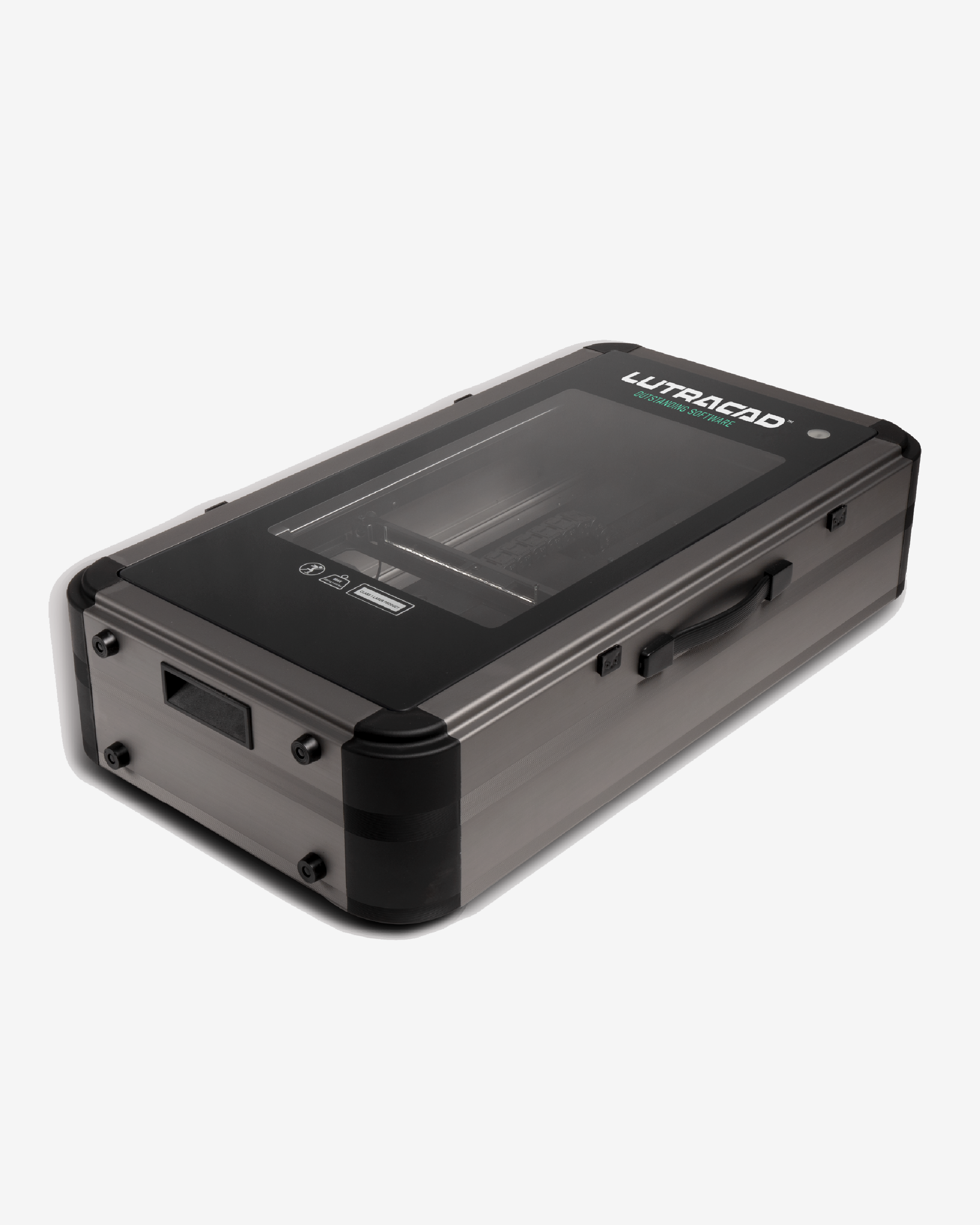

LX800 Plus 3D Foot Scanner

• Exceptional Accuracy: Captures foot geometry with up to 0.5 mm precision, enabling superior digital models for bespoke devices.
• Comprehensive Scanning: Includes the side and heel of the foot or mold — helping you design insoles with better heel-cup profiles and overall fit.
• Fast Scan Times: Produces high-quality scans in approximately 5–9 seconds, streamlining patient workflows.
• Multi-Camera System: Equipped with five cameras to capture detailed geometry efficiently.
• Solid Build for Clinical Use: Durable design with a load capacity suitable for most patient types.

The LX800 Plus supports a wide range of workflows, including:

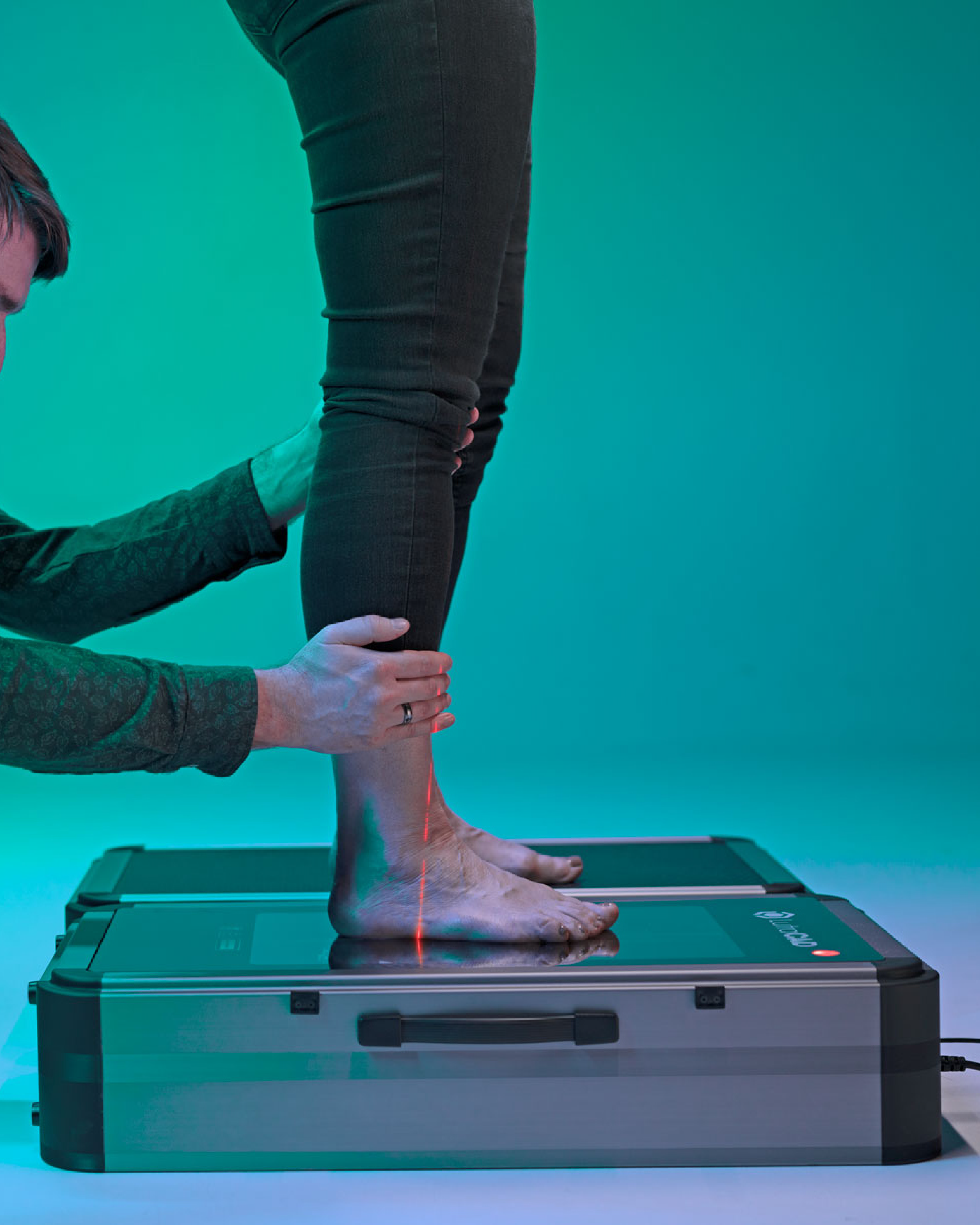

• Direct foot scanning (unloaded, half-loaded, fully loaded)
• Foambox & positive model capture
• Cast scanning for insoles
• Shoe last scanning for midsoles

Whether you are focused on detailed orthotic design, in-house production, or delivering premium patient care, the LutraCAD LX800 Plus offers reliable performance and comprehensive scan data to elevate your workflow.

What is the LX800 Plus 3D Foot Scanner used for?

The LX800 Plus is designed to capture detailed 2D and 3D foot data for use in orthotic, insole and midsole design. It is suitable for clinics, orthotic labs, podiatry practices and production environments.

Who is this scanner suitable for?

This scanner is ideal for healthcare professionals, orthotists, podiatrists, footwear specialists and orthotic labs looking to introduce or improve their digital scanning workflow.

How accurate is the LX800 Plus?

The LX800 Plus captures foot geometry with up to 0.5 mm accuracy, helping provide detailed digital models for bespoke orthotic and insole design.

How long does a scan take?

The scanner can produce high-quality scans in approximately 5–9 seconds, helping to keep patient appointments and clinic workflows efficient.

Can it capture the heel and side of the foot?

Yes. The LX800 Plus includes lateral and heel profile scanning, allowing for a more complete 3D dataset. This can be especially useful when designing insoles with improved heel cup profiles and overall fit.

What types of scans can it be used for?

The LX800 Plus supports direct foot scanning, including unloaded, half-loaded and fully loaded scans. It can also be used for foam box and positive model capture, cast scanning for insoles, and shoe last scanning for midsoles.

Is this suitable for in-house orthotic production?

Yes. The LX800 Plus is well suited to digital orthotic workflows, whether you are designing bespoke insoles, capturing patient foot data, or supporting in-house production processes.

Is the scanner portable?

The LX800 Plus is described as being designed for fixed-location use, making it best suited for clinics, labs and production environments where a reliable scanning station is required.

Does it come with a carry-case cover?

Yes. The product page states that the scanner includes a protective carry-case cover, which can also be used as a side-step when scanning patients.

What is the estimated delivery time?

The estimated delivery date for LutraCAD products is currently 5–10 working days.
